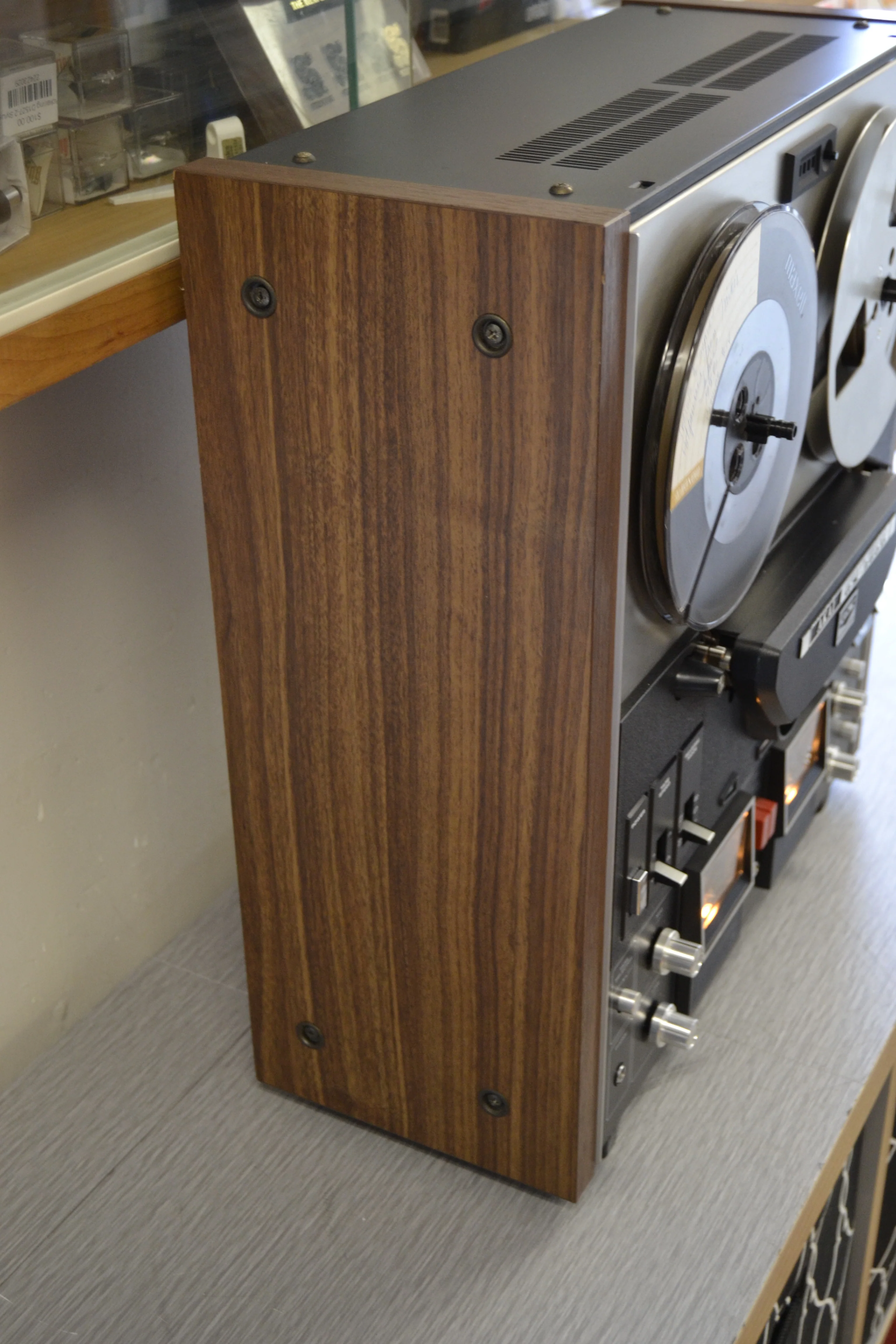

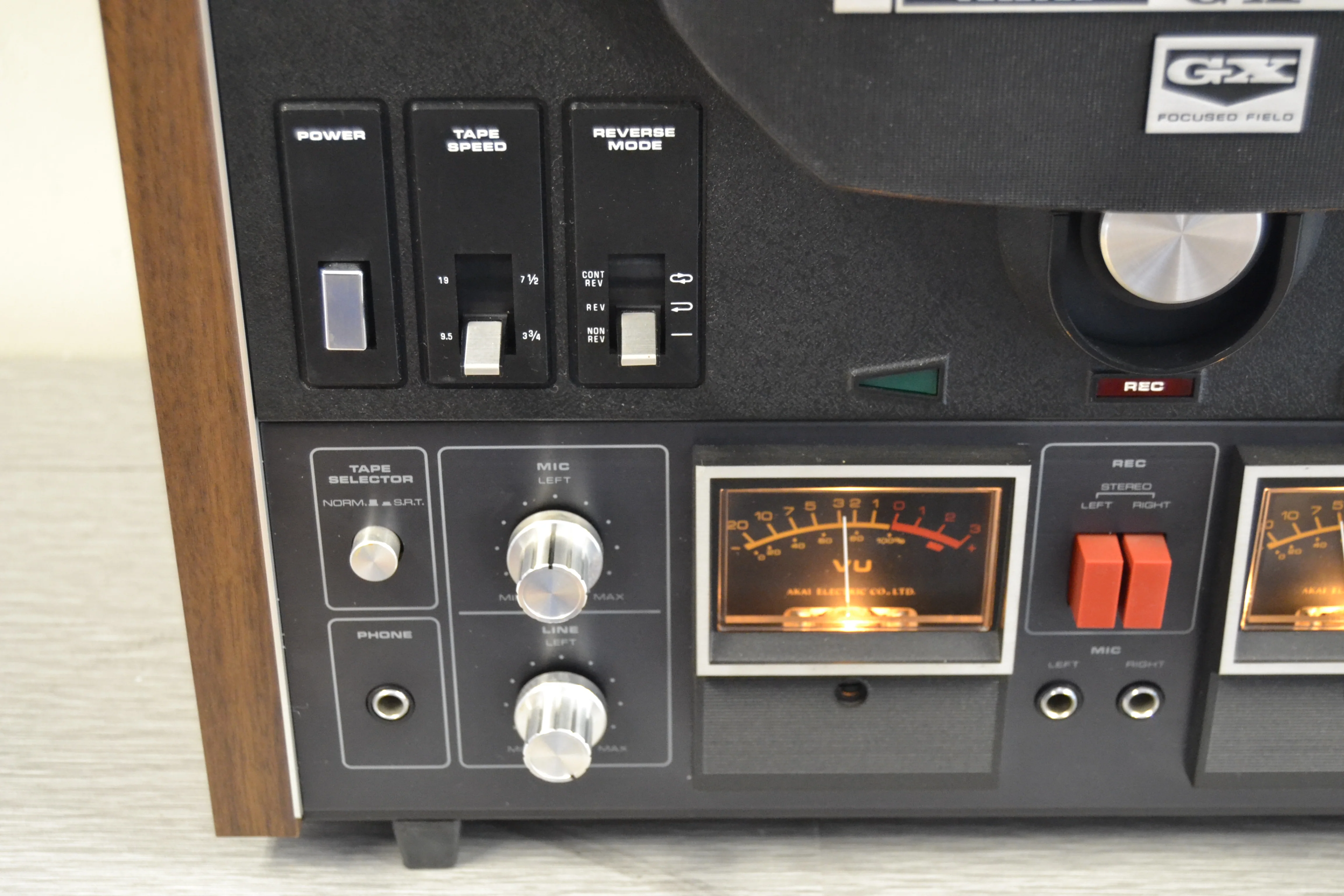

Akai GX-260D Reel to Reel Recorder
Akai GX-260D
Stereo Tape Deck (1973)
Description
The Akai GX-260D is the result of an extensive study to produce the best all round tape deck possible within a reasonable price range.
A complete success, the GX-260D features Akai's world prized GX heads for reverse recording and playback, and a unique centre capstan drive system for friction free tape travel and reduced wow and flutter.
Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 2 x GX record/erase, 2 x GX play
Motor: 2 x reel, 1 x capstan
Reel size: up to 7 inch reel
Equalization: NAB
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.06% (7 1⁄2 ips)
Frequency response: 30Hz to 26kHz (7 1⁄2 ips)
Signal to Noise Ratio: 57dB
Total harmonic distortion: 1.2%
Input: 50mV (line), 25mV (DIN), 0.3mV (mic)
Output: 1.23V (line)
Semiconductors: 30 x transistors, 22 x diodes
Dimensions: 446 x 473 x 226mm
Weight: 20.8kg
