Pictured reels are NOT included

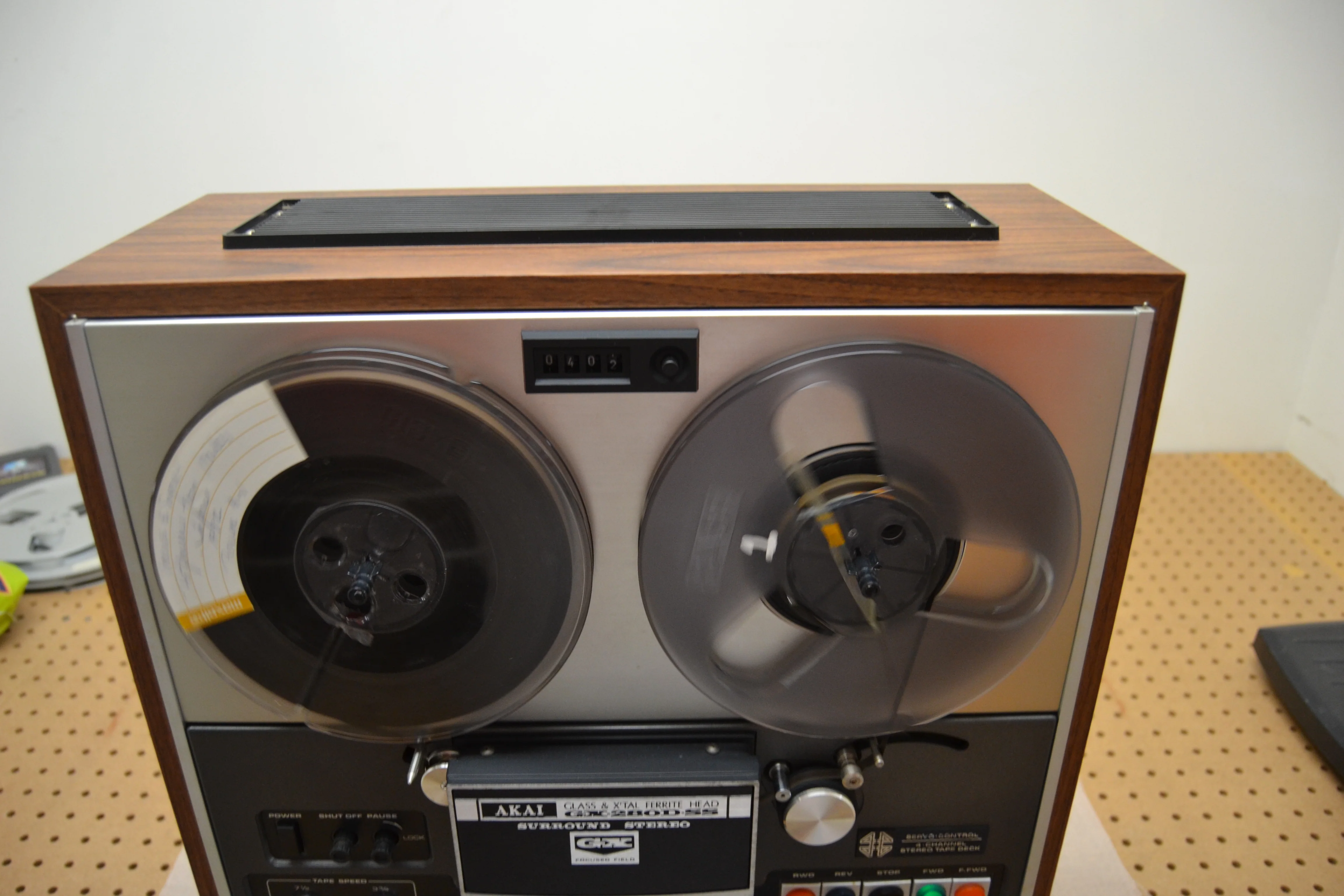

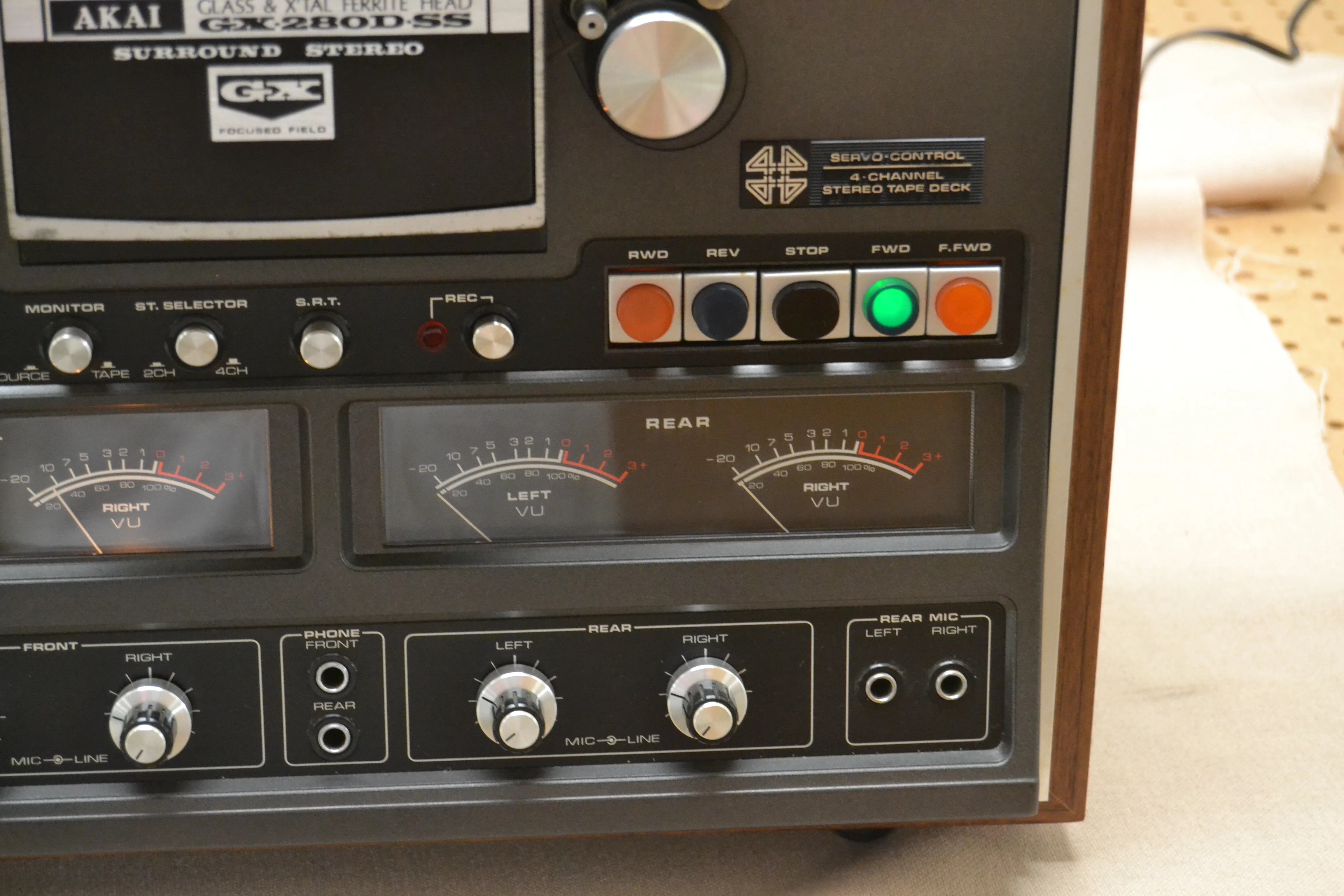

Akai GX-280D-SS

Discrete 4-Channel Tape Deck (1973-76)

Description

The professional 4-channel tape deck is finally here. In the GX-280D-SS, Akai has combined 4 separate heads (including 2 of Akais exclusive GX heads) and 3 outstanding motors.

The results - magnificent musical clarity and unique sound quality. The GX-280D-SS has the best of everything; tape selector circuit, sound on sound, sound mixing, pause control and more.

Specifications

Track system: 4-track, 4-channel, stereo/multi channel system

Heads: 1 x GX playback, 1 x GX record, 2 x erase

Motor: 2 x reel, 1 x capstan

Reel size: up to 7 inch reel

Equalization: NAB

Tape speeds: 3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.1% (7 ¹⁄₂ ips)

Frequency response: 20Hz to 25kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 55dB

Total harmonic distortion: 0.8%

Input: 100mV (line), 10mV (DIN), 0.5mV (mic)

Output: 1.23V (line), 0.4V (DIN)

Semiconductors: 68 x transistors, 52 x diodes, 4 x IC

Dimensions: 430 x 505 x 250mm

Weight: 22.4kg
