Kenwood KR-6340 Stereo & Quad Receiver * 1973 * 40W RMS
Kenwood KR-6340
Stereo Amplifier Receiver (1973-74)
Description
The Kenwood KR-6340 can function as a two or four channel receiver, having a built in regular matrix and SQ type decoders.
As a four channel receiver the amplification channels work separately, each driving one of four speakers.
The semi-complementary directly coupled power amplifiers have wideband and low distortion characteristics which ensure smooth, high-fidelity amplification.

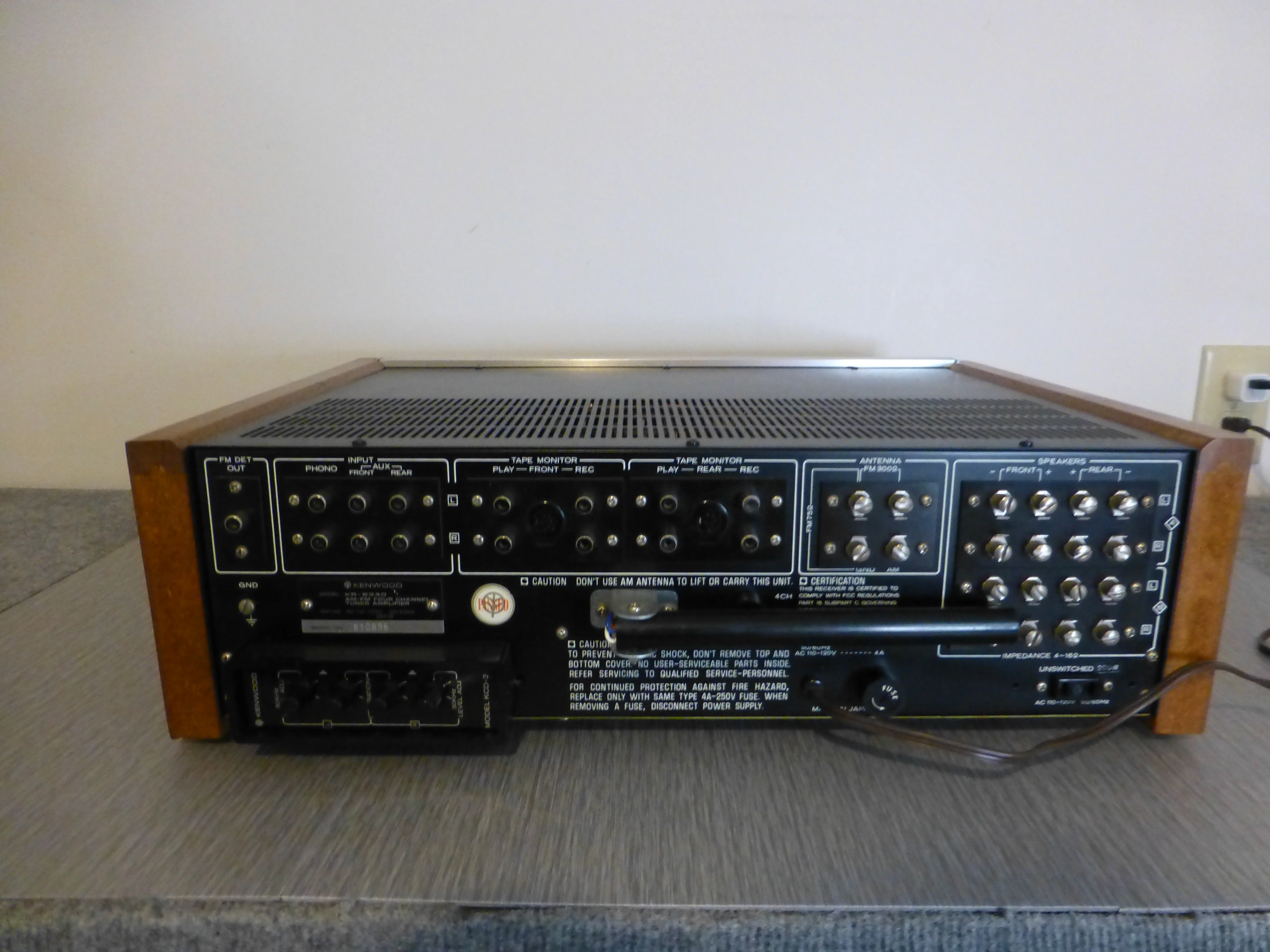

Two pairs of speaker terminals are available to permit simultaneous listening at two different places.
A double switching demodulator is used in the MPX section to prevent carrier leaks and ensure the best sound quality.
Specifications
Tuning range: FM, MW
Power output: 40W/ch (stereo), 15W/ch into 8Ω (quadraphonic)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.8%
Damping factor: 20
Input sensitivity: 1.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 60dB (MM), 75dB (DIN), 75dB (line)
Output: 150mV (line), 40mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 555 x 160 x 360mm
Weight: 15kg
