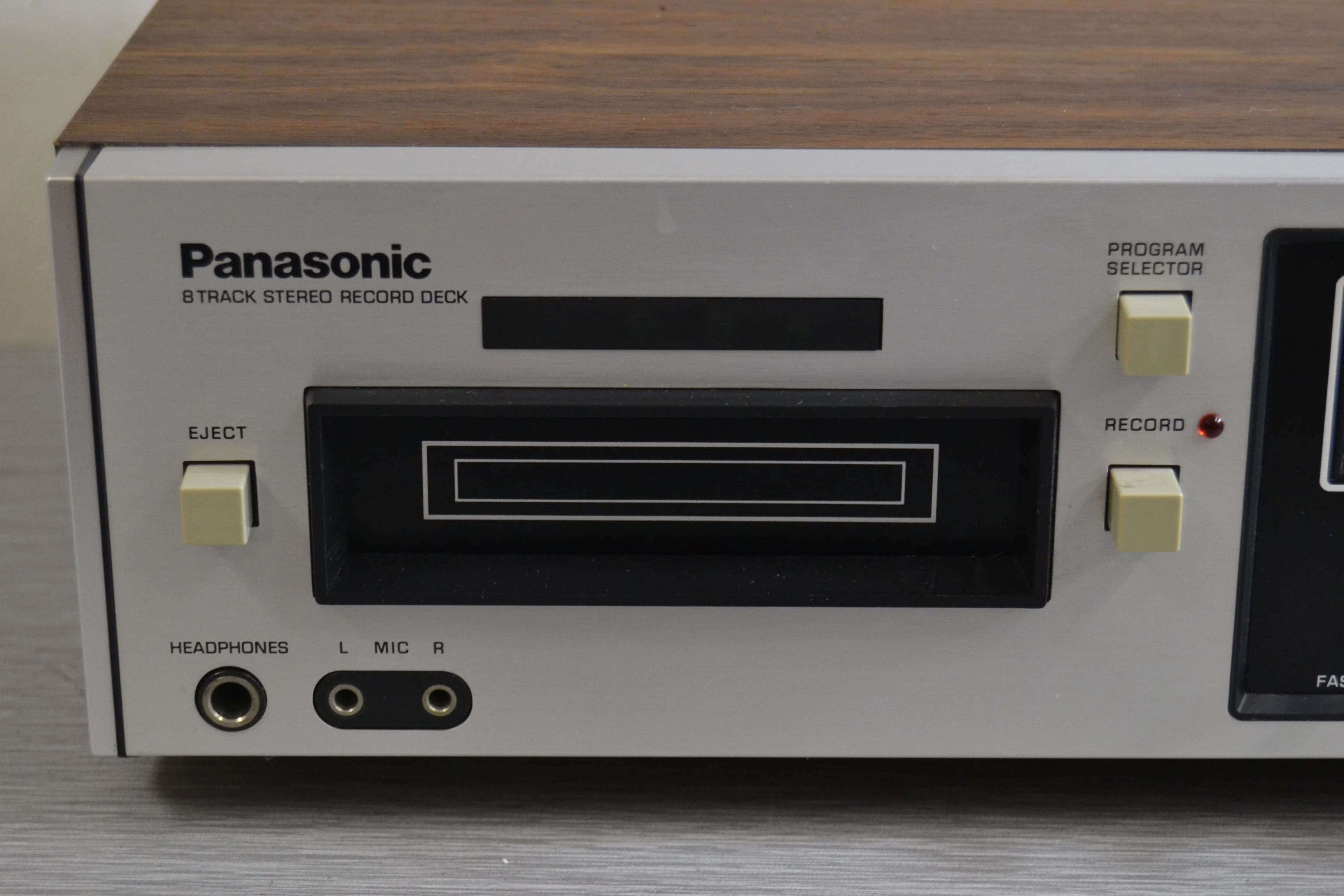

Panasonic RS-805US 8 Track Recorder * Fully Serviced * New Belts

Specifications (Catalog specifications for sales)

Power requirement: AC; 90~109, 110~120, 200~219, 220~250V, 50/60 Hz

Power consumption; 6W

8-track 2-channel stereo recording and

Track system: playback

Recording system: AC bias, AC erase

Operation:

‘Tape speed: 3-3/4 ips.

Wow and flutter: 0.17% (WRMS) Frequency response: 30~13,000 Hz Signal to noise ratio: 45dB

of Model RS-805US

Inputs:

Outputs:

Cartridge slide-in system with Pana-Ject/ continuous play mechanism and remote control eject/program | .

REC/P.B connection: Motor:

Head:

Fast forward time: Program time: Dimensions:

Weight:

for PX.

MIC: 0.28mV applicable microphone impedance 200~6000. (recommended microphone RP-8135)

LINE; 50mV/1OOKQ

LINE: 0.6V (at O VU) load impedance 50 KQ over :

HEADPHONES; output level 45mV/80, (at O VU)

DIN 5P terminal

1-motor system

1-head system

Approx. 480 seconds with 300 feet tape

1 hour stereo recording with 300 feet tape

12-1/2"(W) x 4-3/8" (H) x9-3/4"(D)

8-1/8 Ibs
