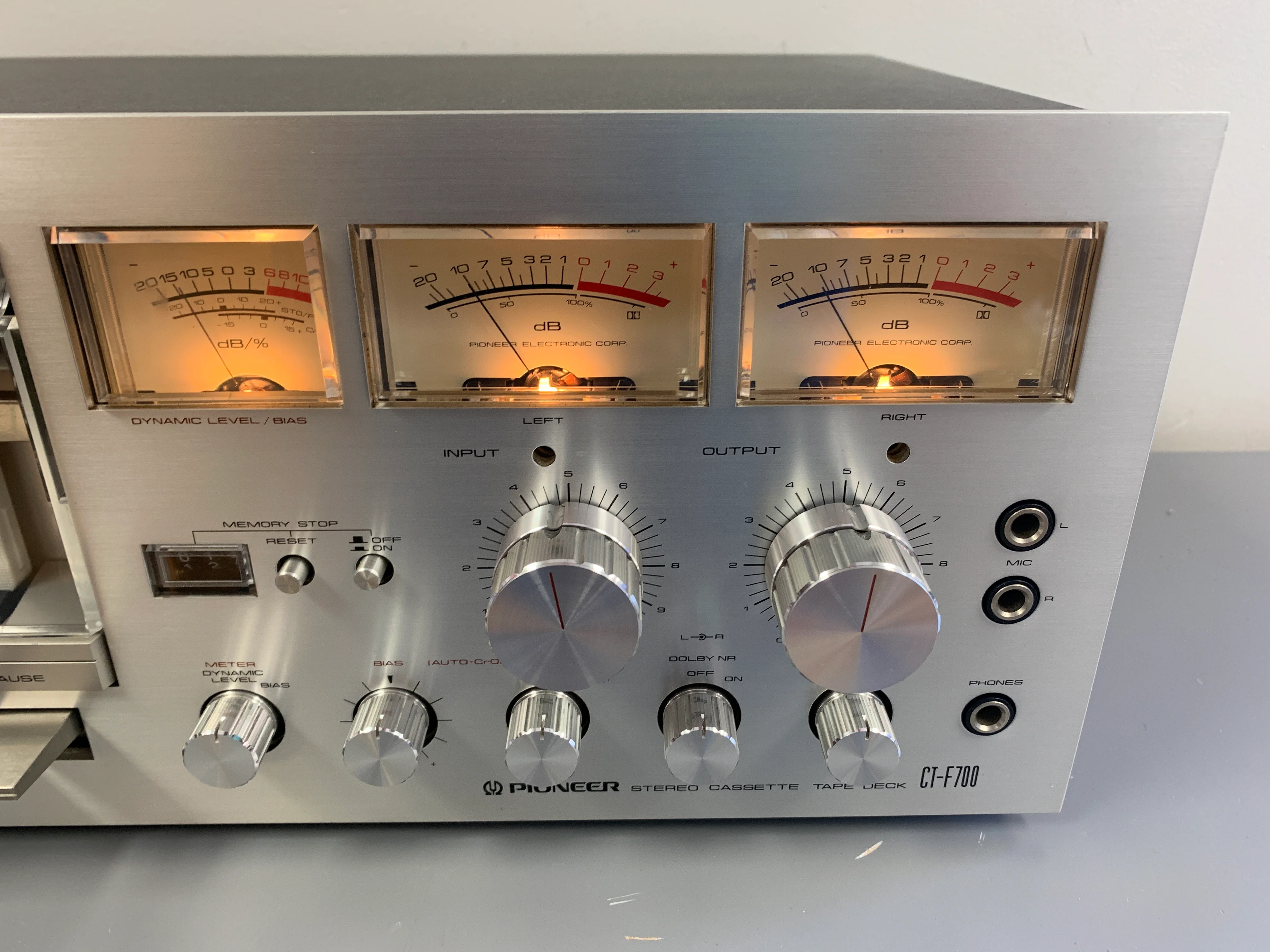

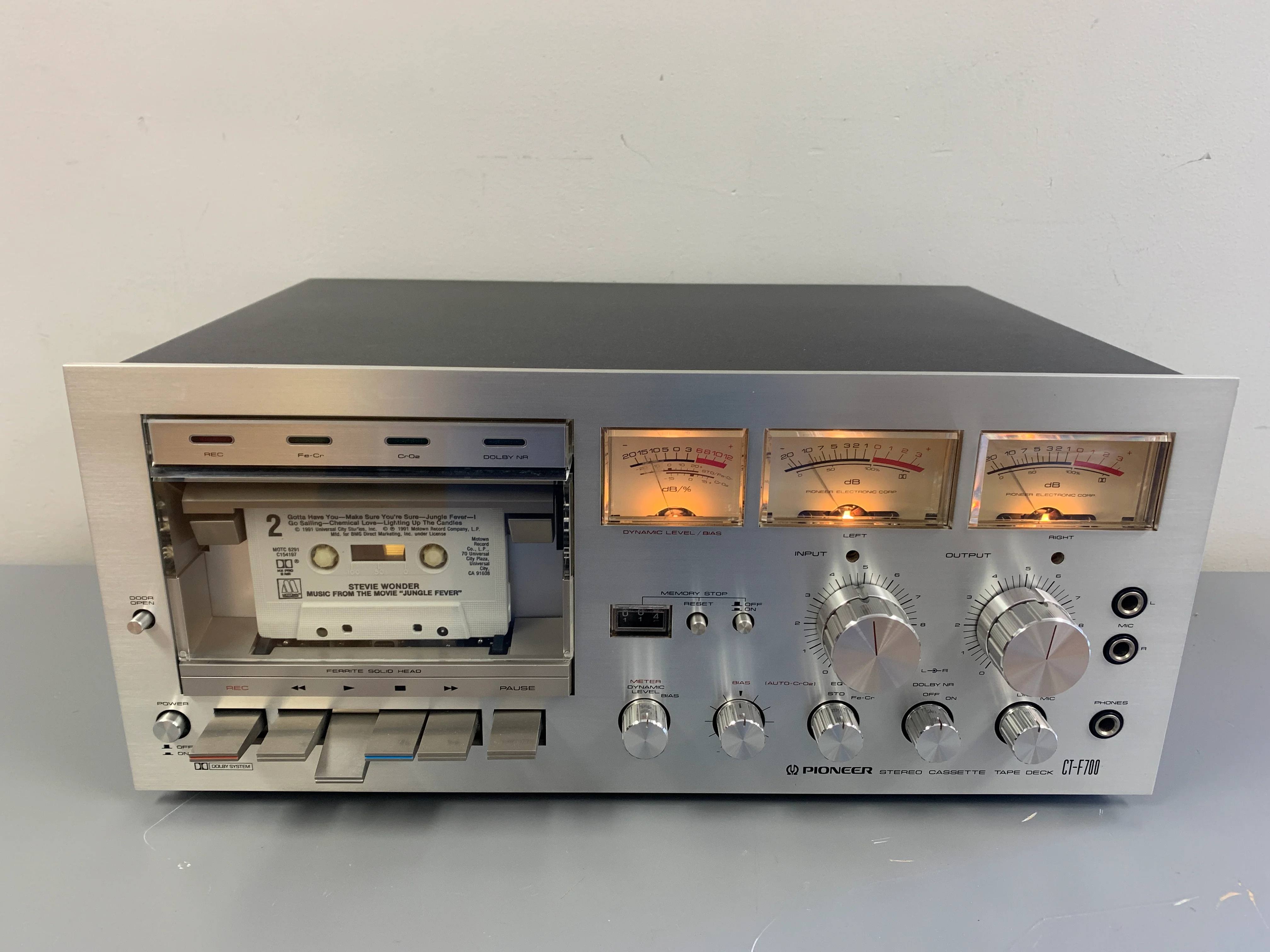

Pioneer CT-F700

Stereo Cassette Tape Deck (1978-79)

Description

The Pioneer CT-F700 is a 2-head, stereo cassette recorder with Dolby noise reduction.

Features include a highly reliable transport mechanism utilizing a DC servo motor, a Ferrite solid head, newly developed dynamic level meter for enhanced recording sound quality, built-in Dolby system for reduced tape hiss, bias adjustment mechanism to bring out the best in tapes and a rich selection of accessory mechanisms.

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: electronically controlled DC

Tape Type: type I, FeCr, CrO2

Noise Reduction: B

Frequency Response: 25Hz to 17kHz  (Cr02 tape)

Signal to Noise Ratio: 64dB  (dolby B)

Wow and Flutter: 0.05%

Total Harmonic Distortion: 1.5%

Input: 64mV (line), 0.3mV (mic)

Output: 0.45V (line)

Semiconductors: 38 x transistors, 52 x diodes, 4 x IC

Dimensions: 420 x 187 x 304mm

Weight: 8.5kg

Year: 1978
