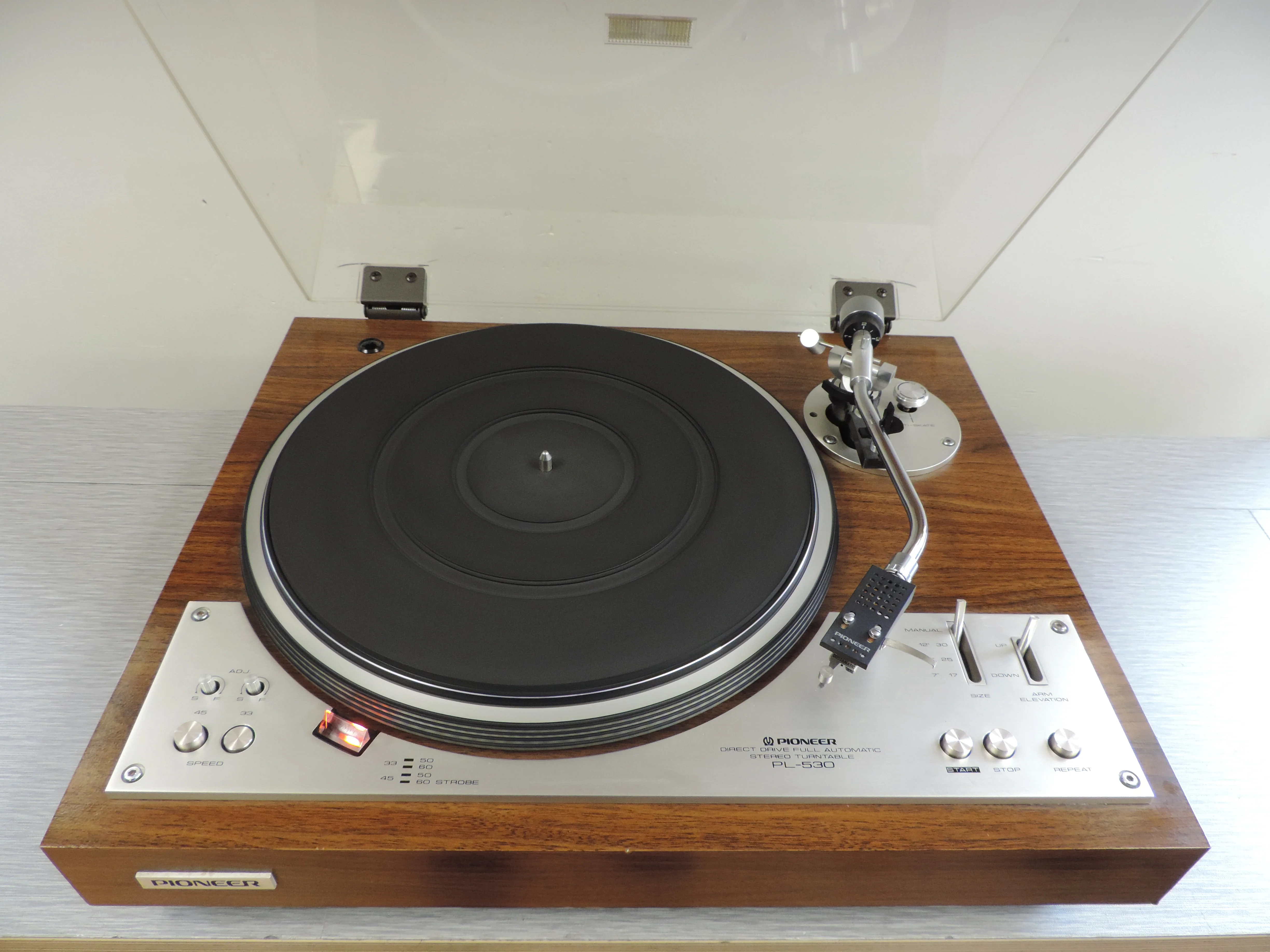

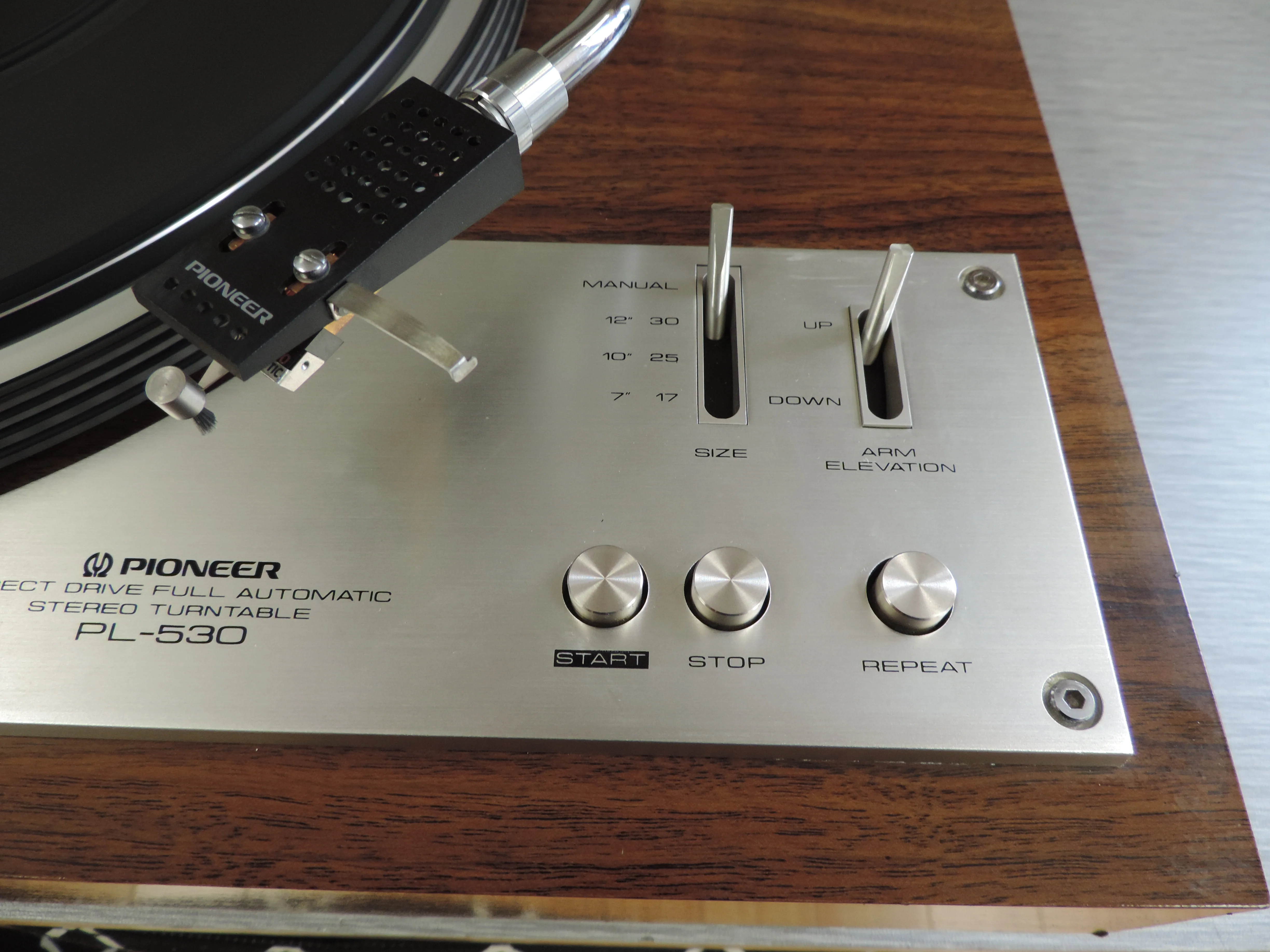

Pioneer PL-530
2-Speed Fully-Automatic Direct-Drive Turntable (1976-1978)
Description
The DC brushless Hall motor in the PL-530 turntable combines Hall elements with a high torque motor and a semi-conductor circuit.
Hall elements, production engineered by Pioneer, are used to switch the polarity in the motor.
Since purely electronic communication is used for switching the motor drive circuit, harmful noise is not generated, and smooth, even rotation can be obtained with high durability.
Specifications
Type: direct drive
Motor: brushless DC servo Hall motor
Platter: 330mm aluminium alloy diecast
Speeds: 33 and 45rpm
Speed control range: +-2%
Wow and flutter: 0.03%
Rumble: 70dB
Tonearm: static-balanced type, s-shaped pipe arm
Effective length: 221mm
Overhang: 15.5mm
Cartridge weight range: 4 to 14.5g
Dimensions: 480 x 390 x 170mm
Weight: 10kg
Original: $600.00
-70%$600.00
$180.00
