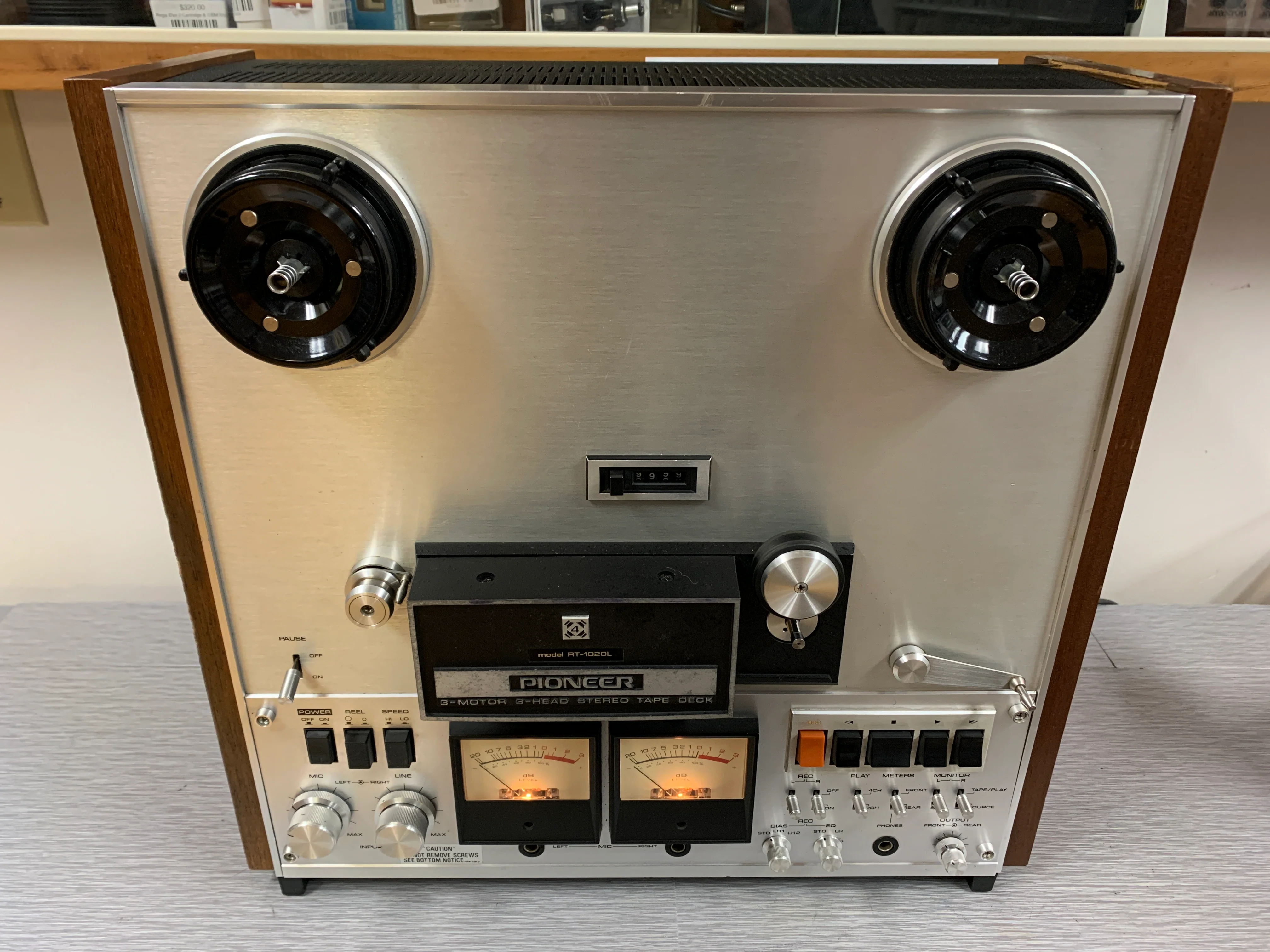

Pioneer RT-1020L Three Motor Three Head Stereo Tape Deck (1974-77)
Hubs are included
Reels are NOT included
Pioneer RT-1020L
Three Motor Three Head Stereo Tape Deck (1974-77)
Description
The RT-1020L is a superb reel-to-reel stereo tape deck. It features a 2 and 4 channel playback head and built-in 4-channel preamplifier so that you may enjoy quadraphonic as well as 2 track and 4 track stereo playback.

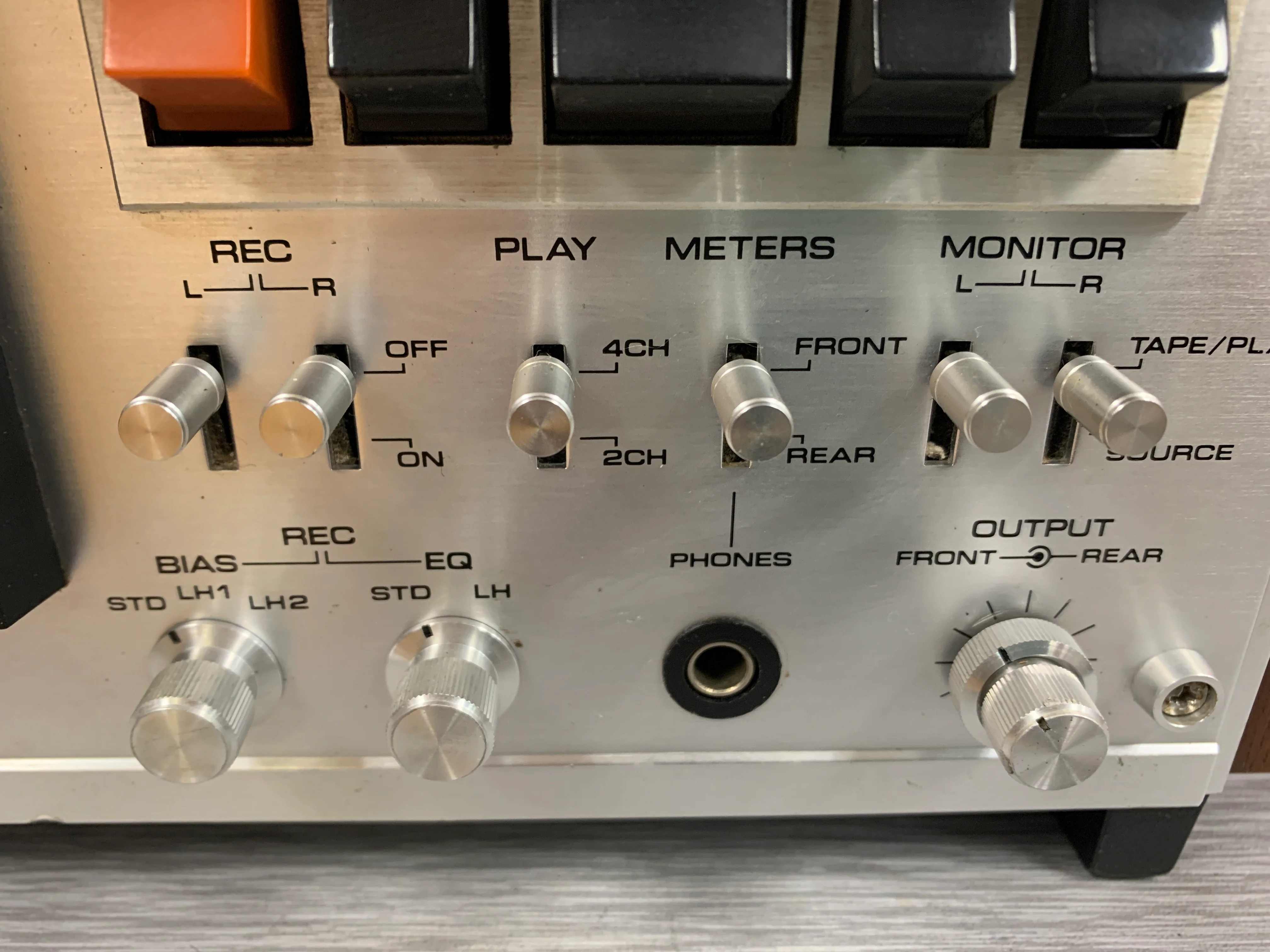

The 3 position bias selector and 2 position equalization selector guarantee perfect reproduction of low noise/high-output tape.
With its high-torque motors, professional sized 10.5 inch reel transport and other standard extras it is built to bring you top versatility, long service and total reliability.
Specifications
Track system: 2/4-track, 2-channel, stereo system
Heads: 1 x playback, 1 x record, 1 x erase
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.08% (7 1⁄2 ips)
Frequency response: 40Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio: 55dB
Total harmonic distortion: 1%
Crosstalk: 60dB
Input: 50mV (line), 15mV (DIN), 0.25mV (mic)
Output: 0.3V (line)
Dimensions: 440 x 431 x 225mm
Weight: 21kg
Year: 1974
Original: $650.00
-70%$650.00
$195.00
Description
Hubs are included
Reels are NOT included
Pioneer RT-1020L
Three Motor Three Head Stereo Tape Deck (1974-77)
Description
The RT-1020L is a superb reel-to-reel stereo tape deck. It features a 2 and 4 channel playback head and built-in 4-channel preamplifier so that you may enjoy quadraphonic as well as 2 track and 4 track stereo playback.
The 3 position bias selector and 2 position equalization selector guarantee perfect reproduction of low noise/high-output tape.
With its high-torque motors, professional sized 10.5 inch reel transport and other standard extras it is built to bring you top versatility, long service and total reliability.
Specifications
Track system: 2/4-track, 2-channel, stereo system
Heads: 1 x playback, 1 x record, 1 x erase
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.08% (7 1⁄2 ips)
Frequency response: 40Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio: 55dB
Total harmonic distortion: 1%
Crosstalk: 60dB
Input: 50mV (line), 15mV (DIN), 0.25mV (mic)
Output: 0.3V (line)
Dimensions: 440 x 431 x 225mm
Weight: 21kg
Year: 1974
