Pioneer RT-701 Reel to Reel * Fully Serviced *
Pioneer RT-701
Reel to Reel Tape Recorder (1980-81)
Description
The Pioneer RT-701 is a 3-motor, 3-head stereo tape deck
Specifications
Track system: 4-track, 2-channel, stereo system

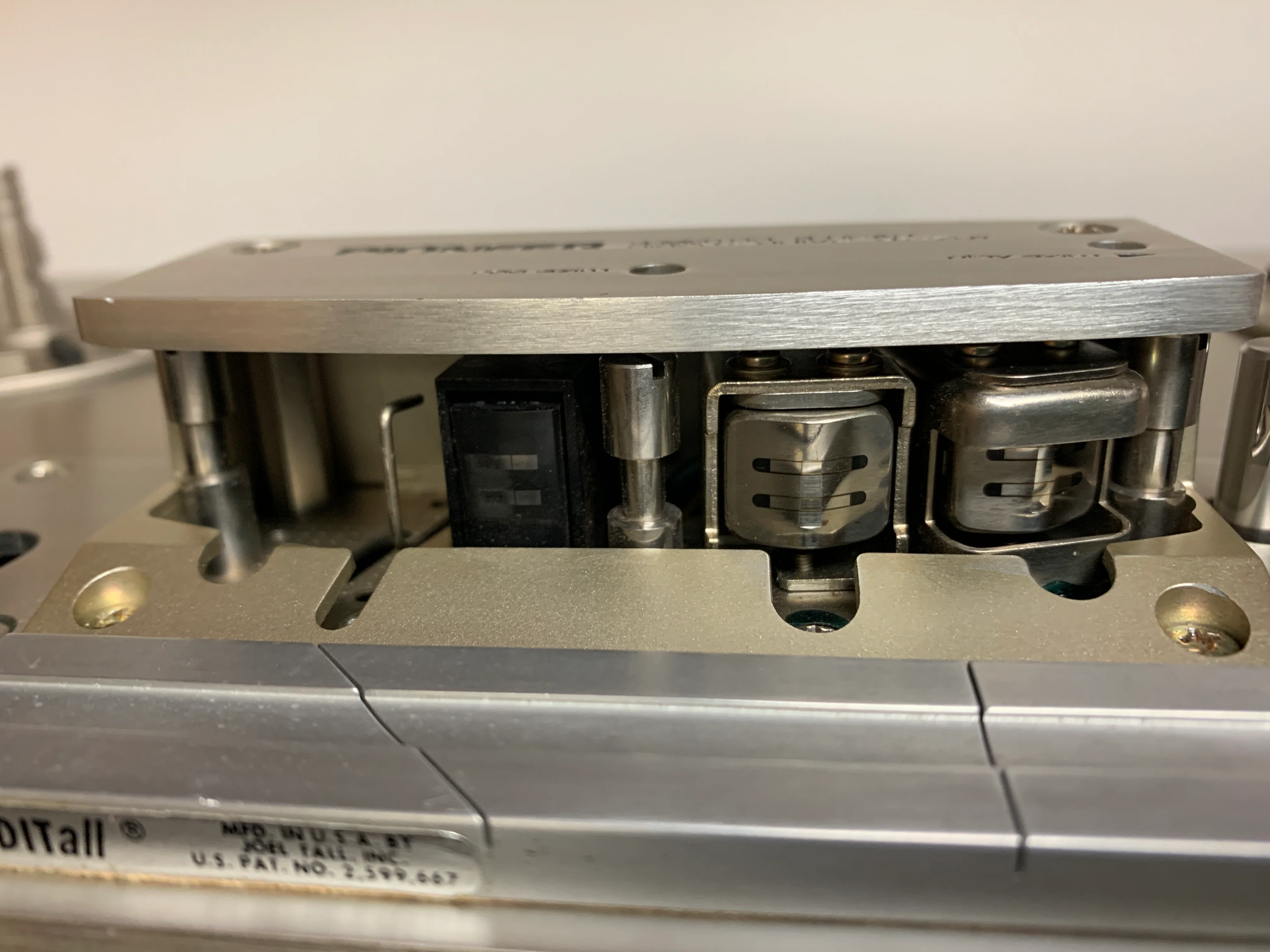

Heads: 1 x playback, 1 x record, 1 x erase
Motor: 2 x reel, 1 x capstan
Reel size: up to 7 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.05% (7 1⁄2 ips)
Frequency response: 20Hz to 28kHz (7 1⁄2 ips)
Signal to Noise Ratio: 58dB
Total harmonic distortion: 1%
Crosstalk: 50dB
Input: 50mV (line), 0.25mV (mic)
Output: 0.45V (line)
Semiconductors: 55 x transistors, 3 x IC, 35 x diodes
Dimensions: 480 x 230 x 356mm
Weight: 19.5kg
Accessories: PR-85 metal reel, connecting cords, head cleaning kit, sensing tape, splicing tape
Year: 1980
