Pioneer RT-71 Reel to Reel * Fully Serviced * Dust Cover * Accessories * Box * 1972

General

• Manufacturer: Pioneer
• Model: RT-71
• Type: Auto-Reverse Stereo Reel Tape
• Year of manufacture: 1972 - 1973
• Made in: Japan
• Color: Metal Black, Wooden Cabinet Walnut
• Remote control: -
• Power consumption: 55 watts
• Dimensions: 437 x 434 x 182 mm (WxHxD)
• Weight: 13.5 kg
• Original price approx.: 79'500 Yen (Japan, 1973), 1'800 DM

Connections

• Number of inputs:
  • Line: 30 mV - 24 V, 330 kOhm

Line DIN:

• • Microphone: 0.3 - 240 mV, 50 kOhm
• Number of outputs:
  • Line: 775 mV, 50 kOhm, max. 1.2 V

Line DIN: 775 mV, 50 kOhm

• • Headphones: max. 20 mV, 8 Ohm

Technical Data

• 4-track stereo tape deck
• Max. Reel diameter: 18 cm
• Drive: 1x 4-pole motor
• Heads: 4 (2x record/play, 2x erase)
• Tracks: 4
• Tape speeds: 9.5 cm/s, 19 cm/s
• Synchronisation fluctuations:
  • 0.1% (at 9.5 cm/s).
  • 0.05% (at 19 cm/s)
• Overall frequency response:
  • 50Hz - 15kHz (at 9.5 cm/s)

30Hz - 20kHz (at 19 cm/s)

• Signal-to-noise ratio: > 56 dB
• Spurious signal-to-noise ratio:
• Distortion factor:
• Equalization: NAB Standard
• Crosstalk attenuation:
• Cancellation attenuation:
• Premagnetization and extinction frequency:
• Rewind: 110 seconds for 370m band

Special Features

• Automatic Reverse

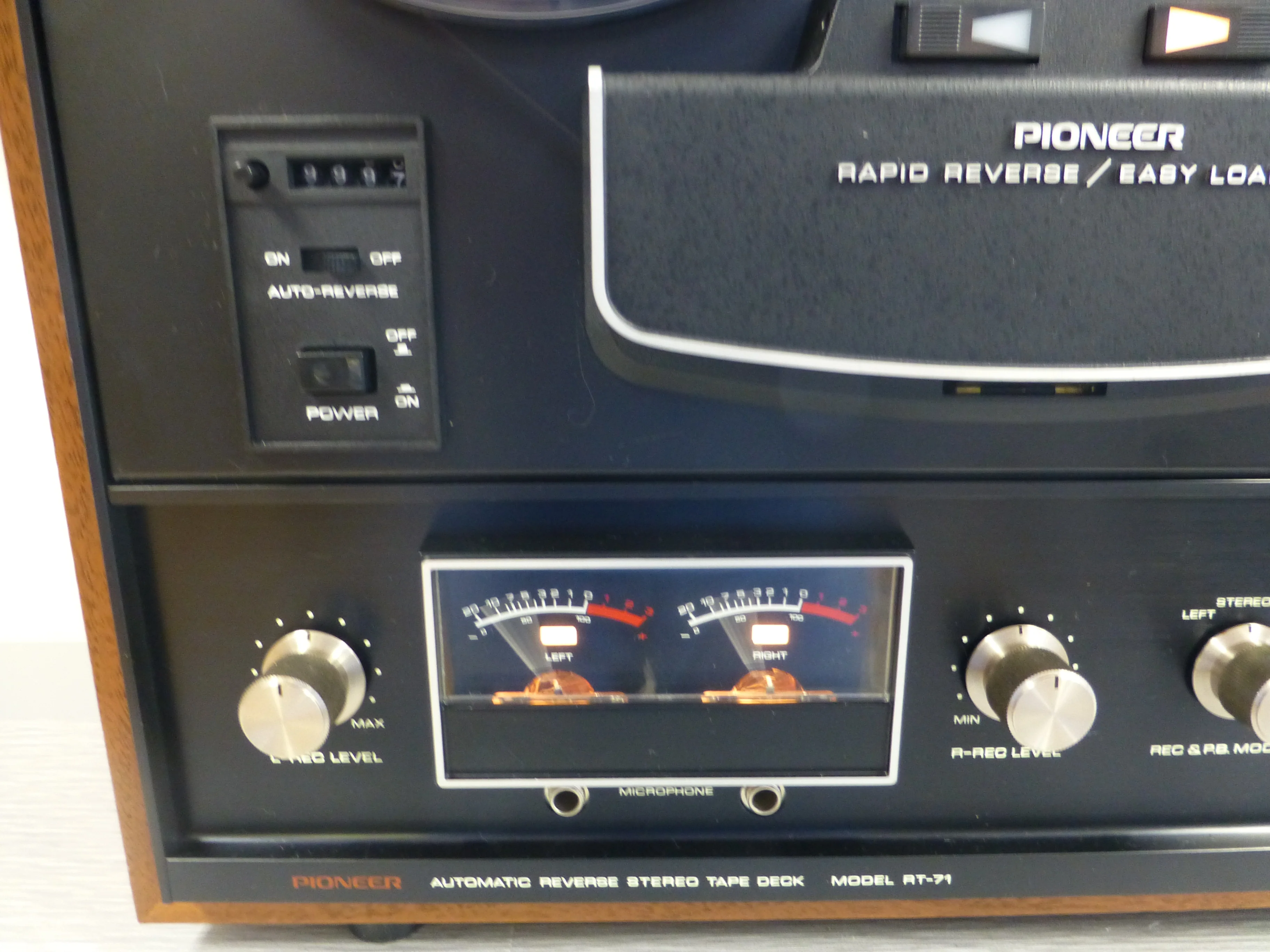

• Recording master control
• Headphone jack
