Pioneer SA-800 Integrated Amplifier * TX 800 Tuner
Pioneer SA-800
Solid State Stereo Integrated Amplifier (1971-72)
Description
The Pioneer SA-800 combines a modern control panel with luxurious cabinet styling in natural wood. Used together with other Pioneer Hi-Fi components, it presents an appearance of perfectly matched, systemized elegance.
The equalizer/head amplifier consists of three direct coupled stages, possessing high gain and, therefore, a wide dynamic range. Emitter to emitter feedback results in high stability and extremely accurate equalizing characteristics.
The power amplifier stage is a quasi complementary design with direct coupling, ie without coupling capacitors between the individual stages. This results in a super wide frequency response curve ranging from near DC to well above the audible sound range.
To maintain high output power with good stability, a positive negative symmetrical power supply unit is employed. These design features make the SA-800 power amp stage one of the world's most advanced Hi-Fi amplifiers.
The SA-800 is equipped with terminals for a full range of program sources including two turntables, a tuner, two tape decks, microphone plus two auxiliary sources such as a cartridge tape player or TV sound track.
With two tape decks connected, duplicating and editing of recorded tapes becomes extremely easy.
The SA-800 incorporates a wide range of extra features which mark it as a truly advanced, versatile amplifier. These include a speaker selector which enables two sets of speakers to be used separately or together, a Pre and Main switch permitting independent use of the pre and power amplifier sections in a multi amp installation, an audio muting switch, a mode switch and a loudness switch.
Specifications
Power output: 26 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 60kHz
Total harmonic distortion: 0.5%
Damping factor: 65
Input sensitivity: 2.3mV (mic), 0.11mV (MC), 3mV (MM), 56mV (ceramic), 230mV (line)
Signal to noise ratio: 80dB (MM), 100dB (line)
Output: 230mV (line), 35mV (DIN), 3V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 2 x FET, 35 x transistors, 20 x diodes
Dimensions: 430 x 145 x 337mm
Weight: 10.3kg
Year: 1971
******************

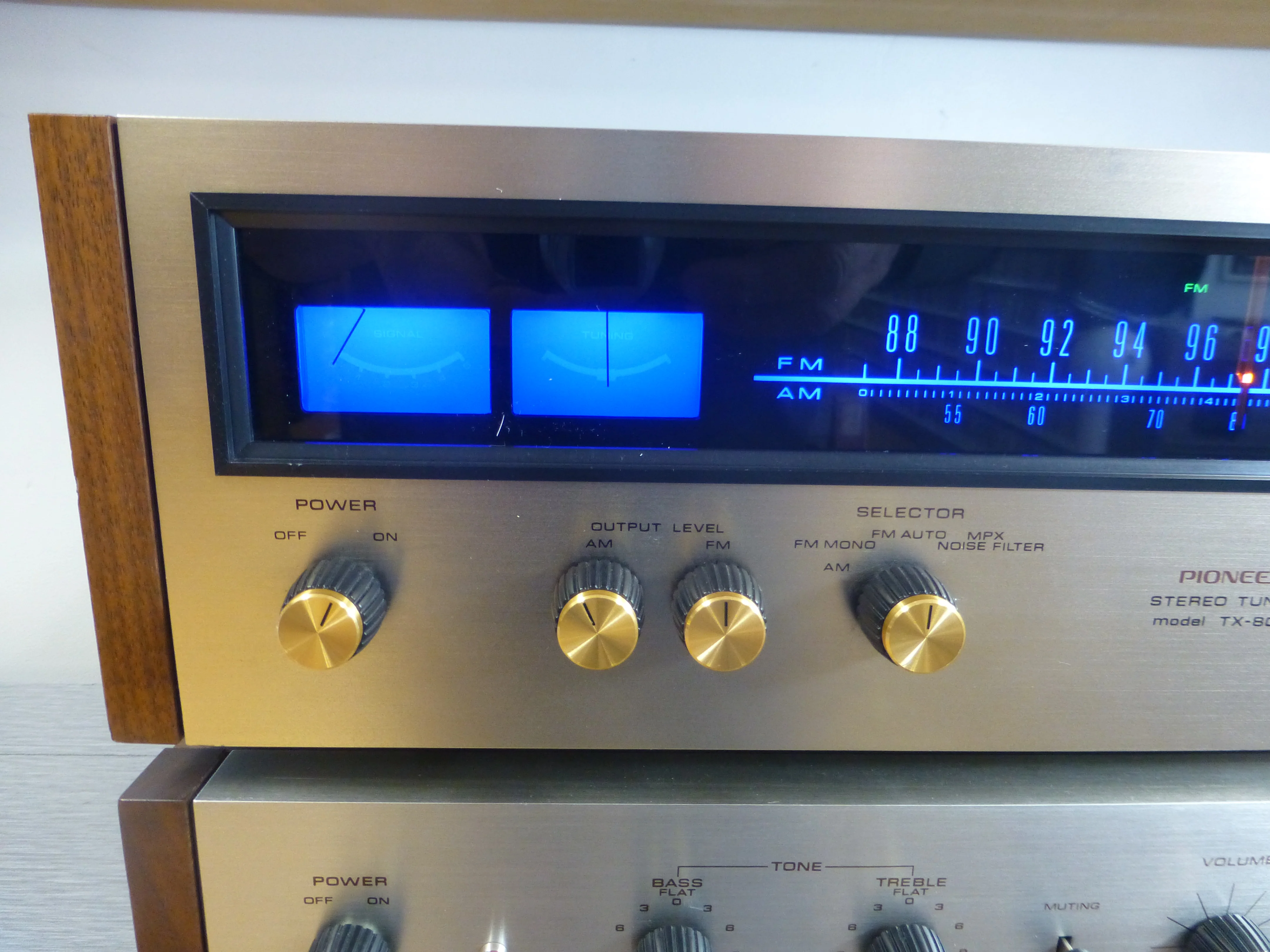

Pioneer TX-800
AM/FM Stereo Tuner (1971-72)
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 525 to 1605 kHz
Sensitivity: 1.8uV (FM), 10uV (MW)
Signal to Noise Ratio: 70dB (FM), 50dB (MW)
Distortion: 0.5% (FM)
Selectivity: 70dB (FM), 30dB (MW)
Output: 2400mV
Semiconductors: 2 x FET, 4 x IC, 29 x transistors, 18 x diodes
Dimensions: 430 x 145 x 345mm
Weight: 7.3kg
Year: 1971
