Pioneer SX-434 Stereo Receiver * 15W RMS * 1975
Pioneer SX-434
AM/FM Stereo Receiver (1974-76)
Description
The SX-434 is Pioneer's budget priced FM/MW stereo receiver.
It features a high performance FM front end with low noise FET and 3-gang frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section provide high selectivity of 60dB.
Other features include click stop tone controls, 2 pairs of speaker terminals and a headphone socket.
Specifications
Tuning range: FM, MW
Power output: 15 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 25kHz
Total harmonic distortion: 0.8%
Damping factor: 25
Input sensitivity: 10mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)

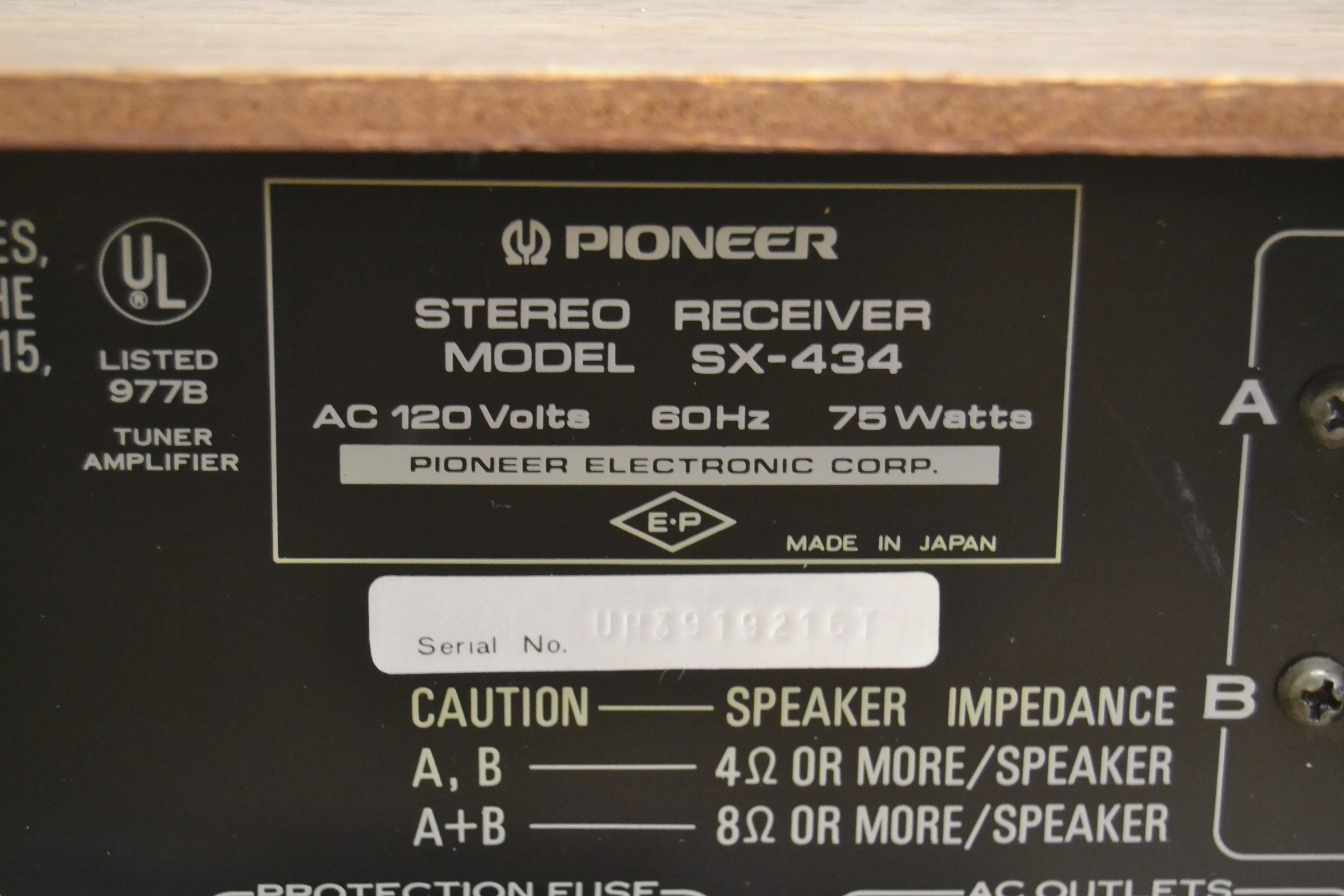

Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 3 x IC, 27 x transistors, 13 x diodes
Dimensions: 430 x 140 x 347mm
Weight: 8.1kg
Year: 1974
Original: $250.00
-70%$250.00
$75.00
Description
Pioneer SX-434
AM/FM Stereo Receiver (1974-76)
Description
The SX-434 is Pioneer's budget priced FM/MW stereo receiver.
It features a high performance FM front end with low noise FET and 3-gang frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section provide high selectivity of 60dB.
Other features include click stop tone controls, 2 pairs of speaker terminals and a headphone socket.
Specifications
Tuning range: FM, MW
Power output: 15 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 25kHz
Total harmonic distortion: 0.8%
Damping factor: 25
Input sensitivity: 10mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 3 x IC, 27 x transistors, 13 x diodes
Dimensions: 430 x 140 x 347mm
Weight: 8.1kg
Year: 1974
