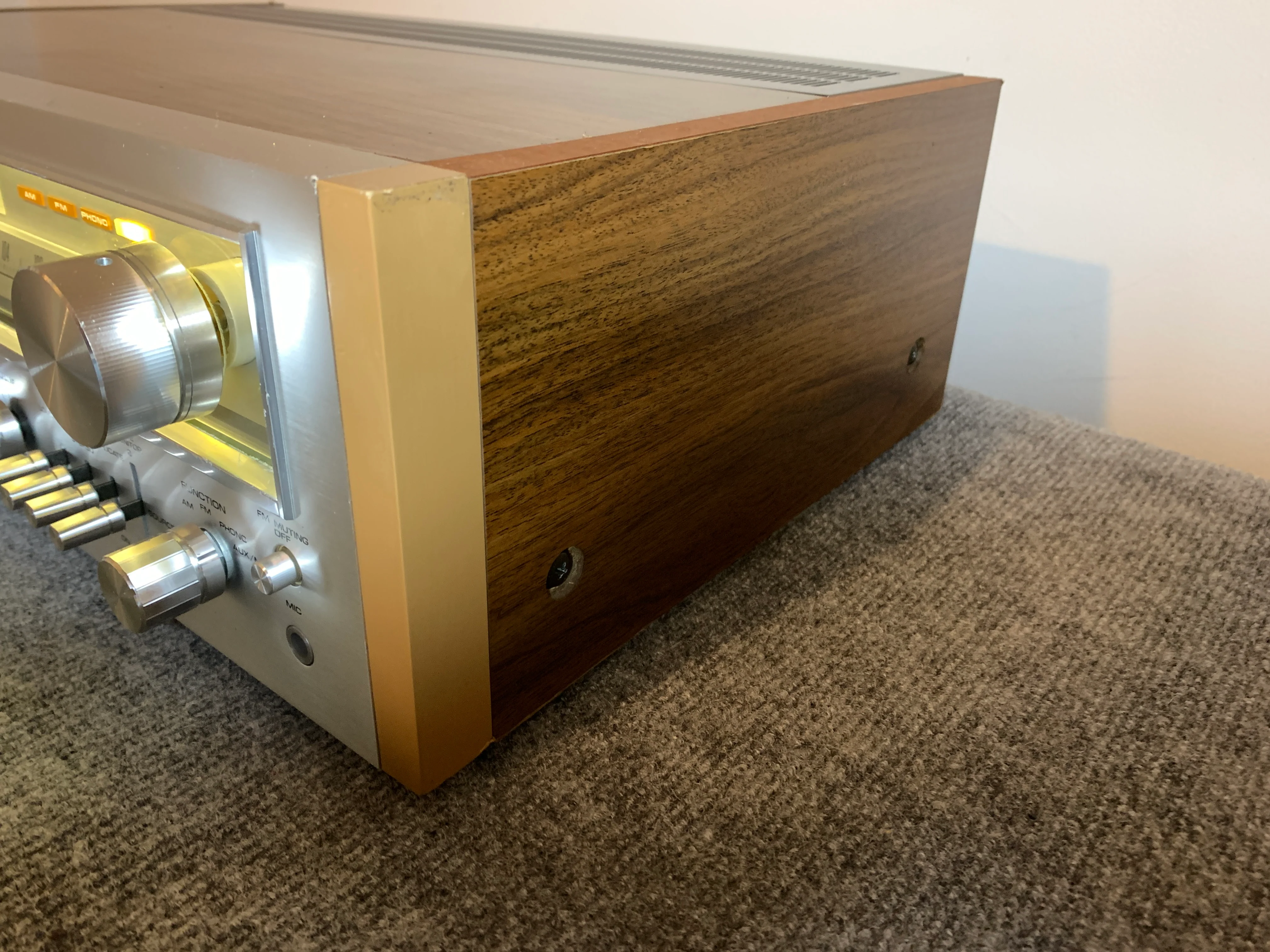

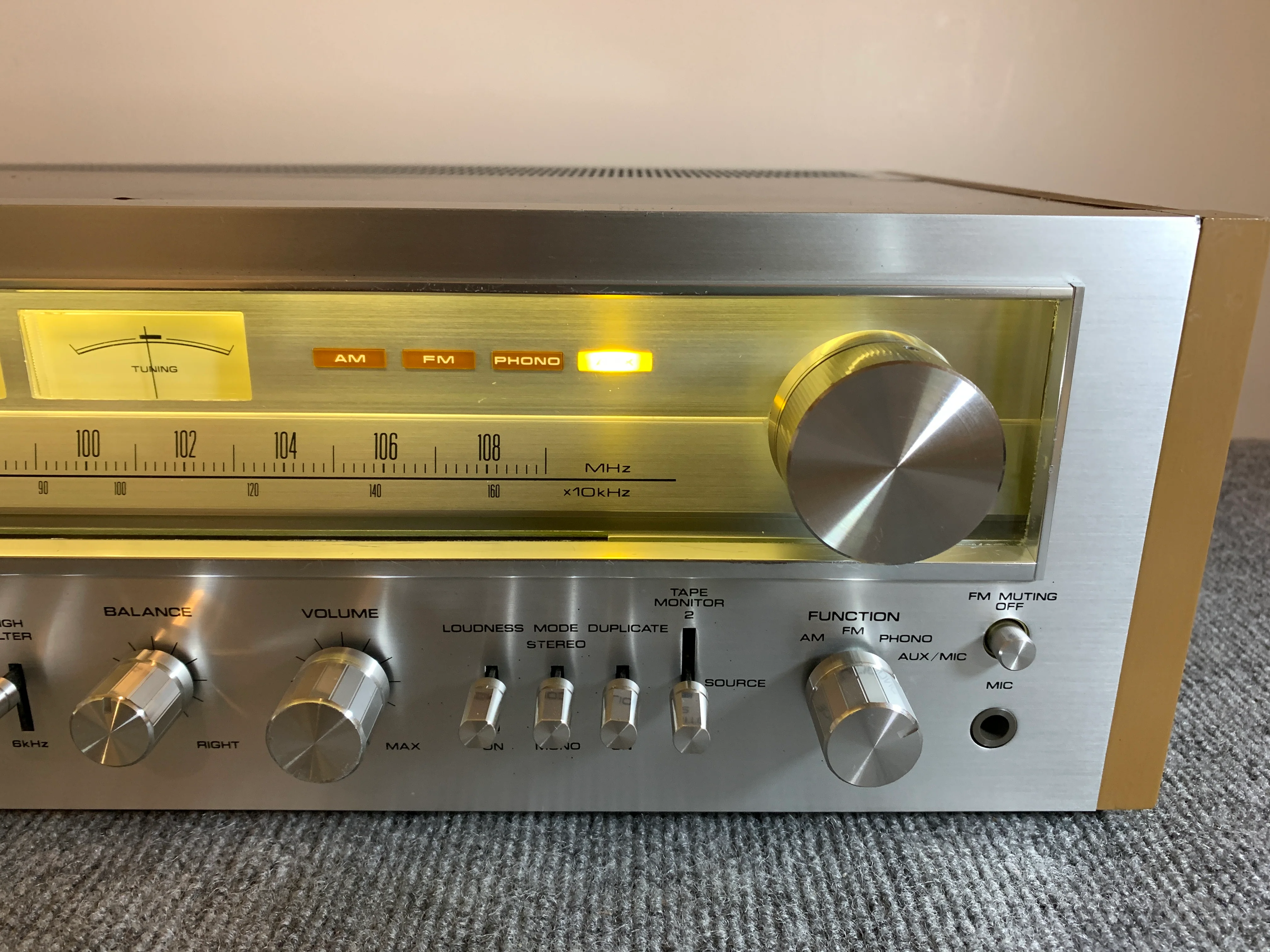

Pioneer SX-750 Stereo Receiver
Pioneer SX-750
AM/FM Stereo Receiver (1976-78)
Specifications
Tuning range: FM, MW
Power output: 50 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.1%
Damping factor: 30
Input sensitivity: 5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 7 x IC, 42 x transistors, 40 x diodes
Dimensions: 480 x 149 x 371mm
Weight: 13.7kg
Accessories: FM T-type antenna
Original: $300.00
-70%$300.00
$90.00
Description
Pioneer SX-750
AM/FM Stereo Receiver (1976-78)
Specifications
Tuning range: FM, MW
Power output: 50 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.1%
Damping factor: 30
Input sensitivity: 5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 7 x IC, 42 x transistors, 40 x diodes
Dimensions: 480 x 149 x 371mm
Weight: 13.7kg
Accessories: FM T-type antenna
