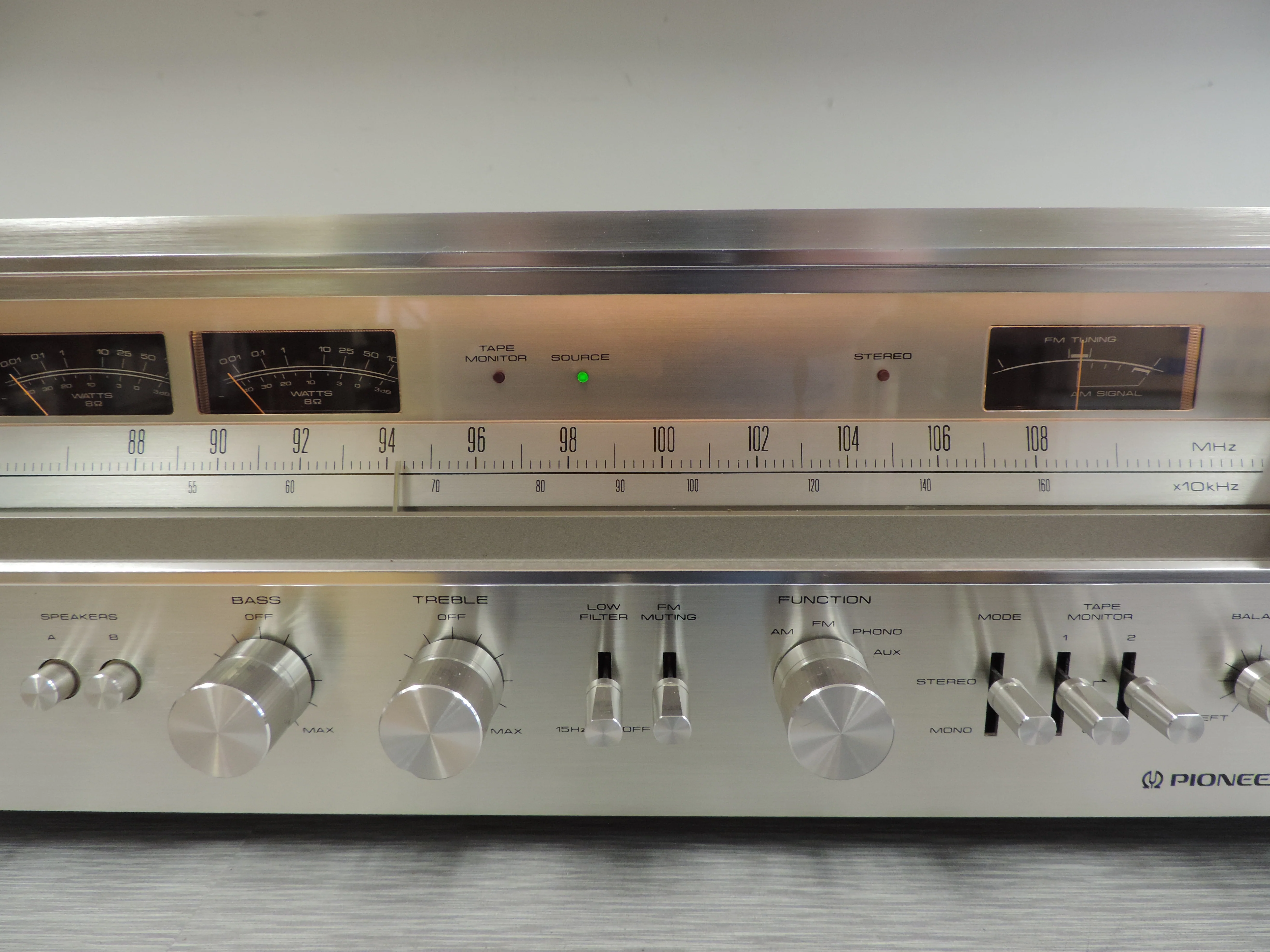

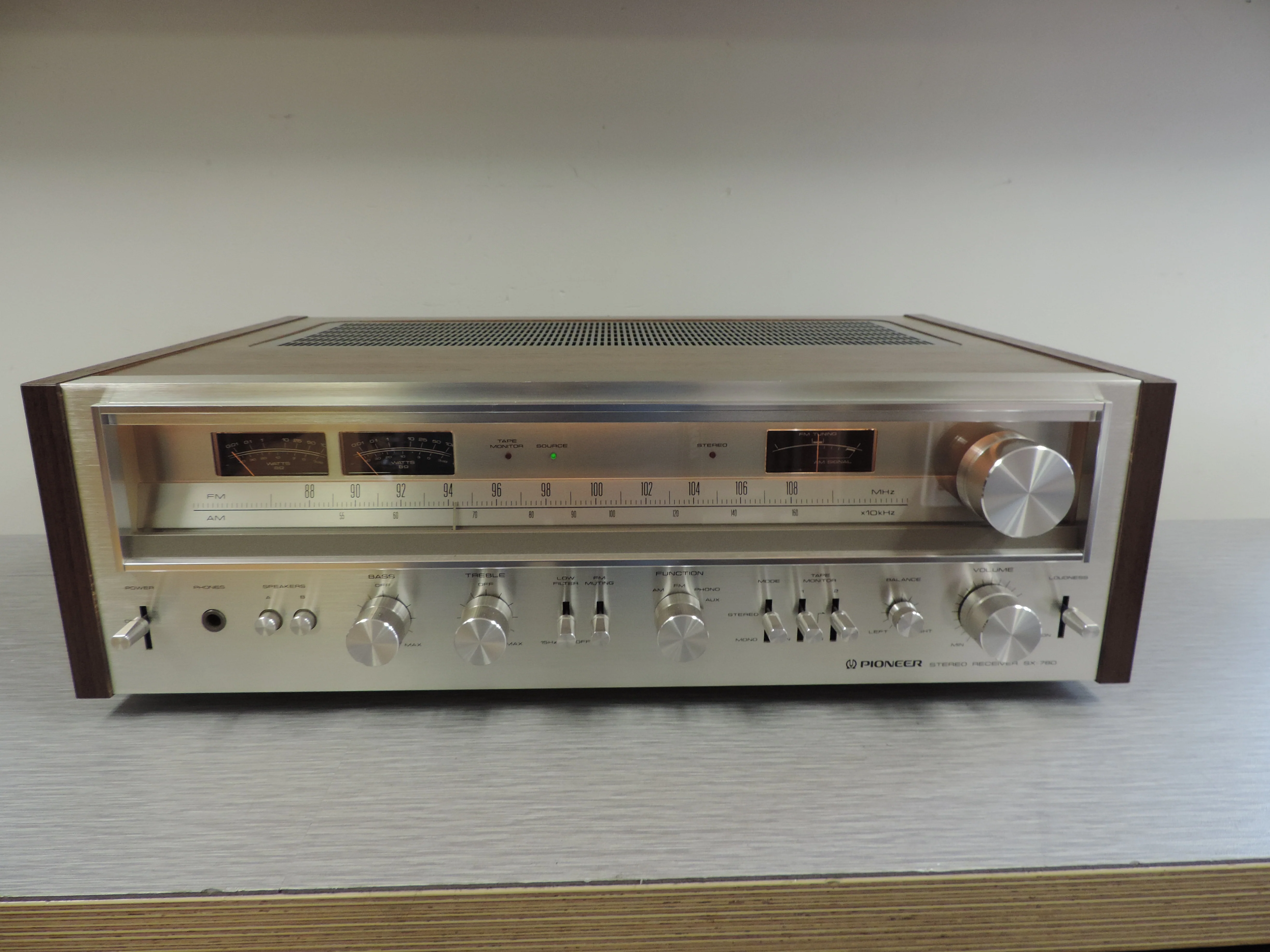

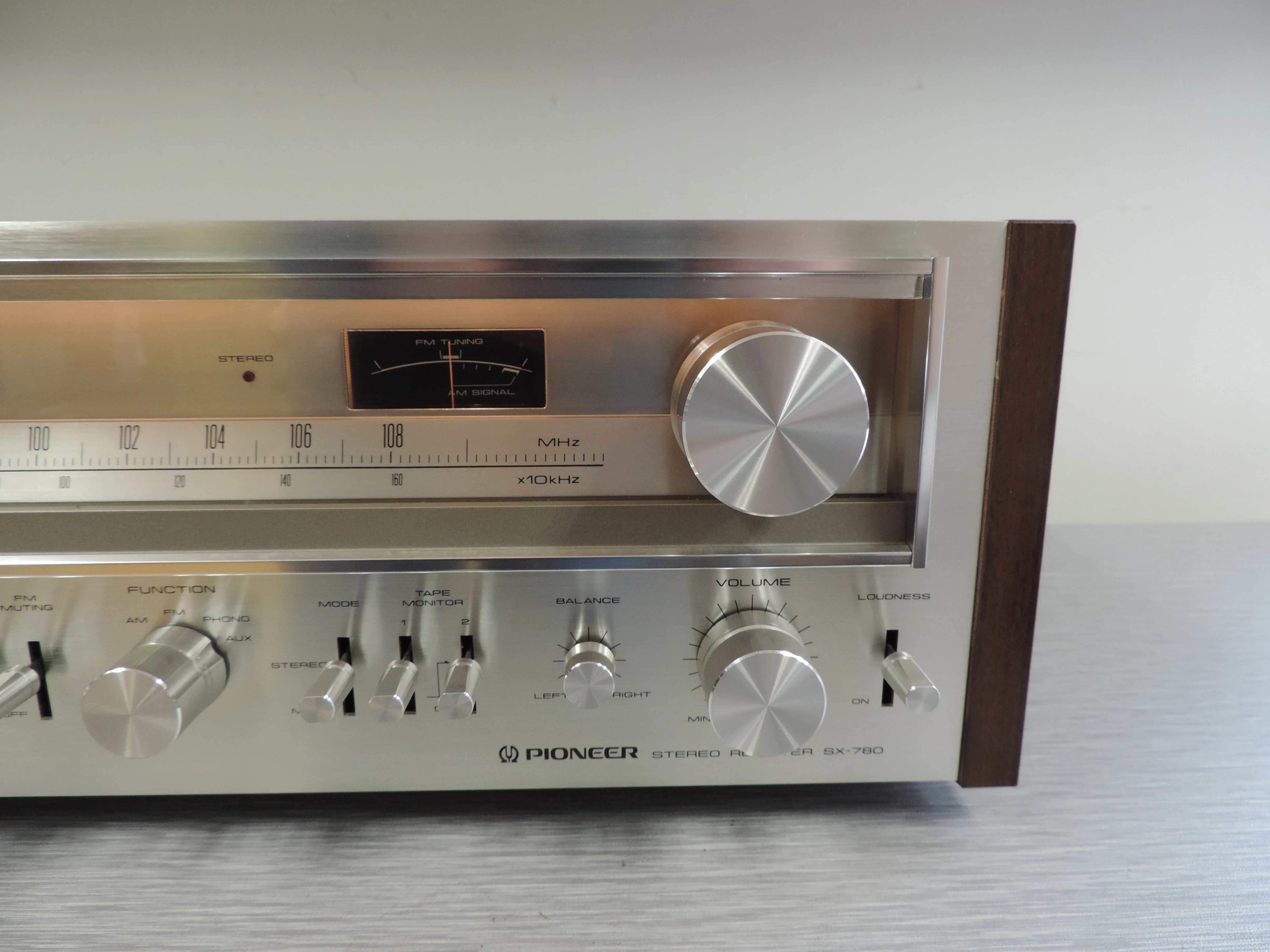

Pioneer SX-780 Stereo Receiver
Pioneer SX-780
AM/FM Stereo Receiver (1979)
Description
The SX-780 features a high output, low distortion power amplifier, a high fidelity equalizer amplifier with low noise and high gain, a high stability tuner section, tone controls with tone defeat function, built in protection circuits and independent power meters.
Specifications
Tuning range: FM, MW
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 80kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 76dB (MM), 95dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 5 x FWT, 11 x IC, 26 x transistors, 22 x diodes
Dimensions: 480 x 140 x 320mm
Weight: 11.2kg
Accessories: FM T-type antenna
