RG Pro 16 Dynamic Processor Expander
- Dynamic Expansion: It makes quiet signals even quieter while leaving loud signals untouched, effectively increasing the difference between soft and loud sounds.
- Noise Reduction: Ideal for cleaning up vinyl records or analog tape by electronically scrubbing out background noise, scratches, and tape hiss.
- Automatic Control: Features automatic attack and release times that adapt to the music, re-controlling dynamics for balanced reproduction.
- Controls: Typically includes controls for expansion level (dB), and often switches for different modes or types of expansion.

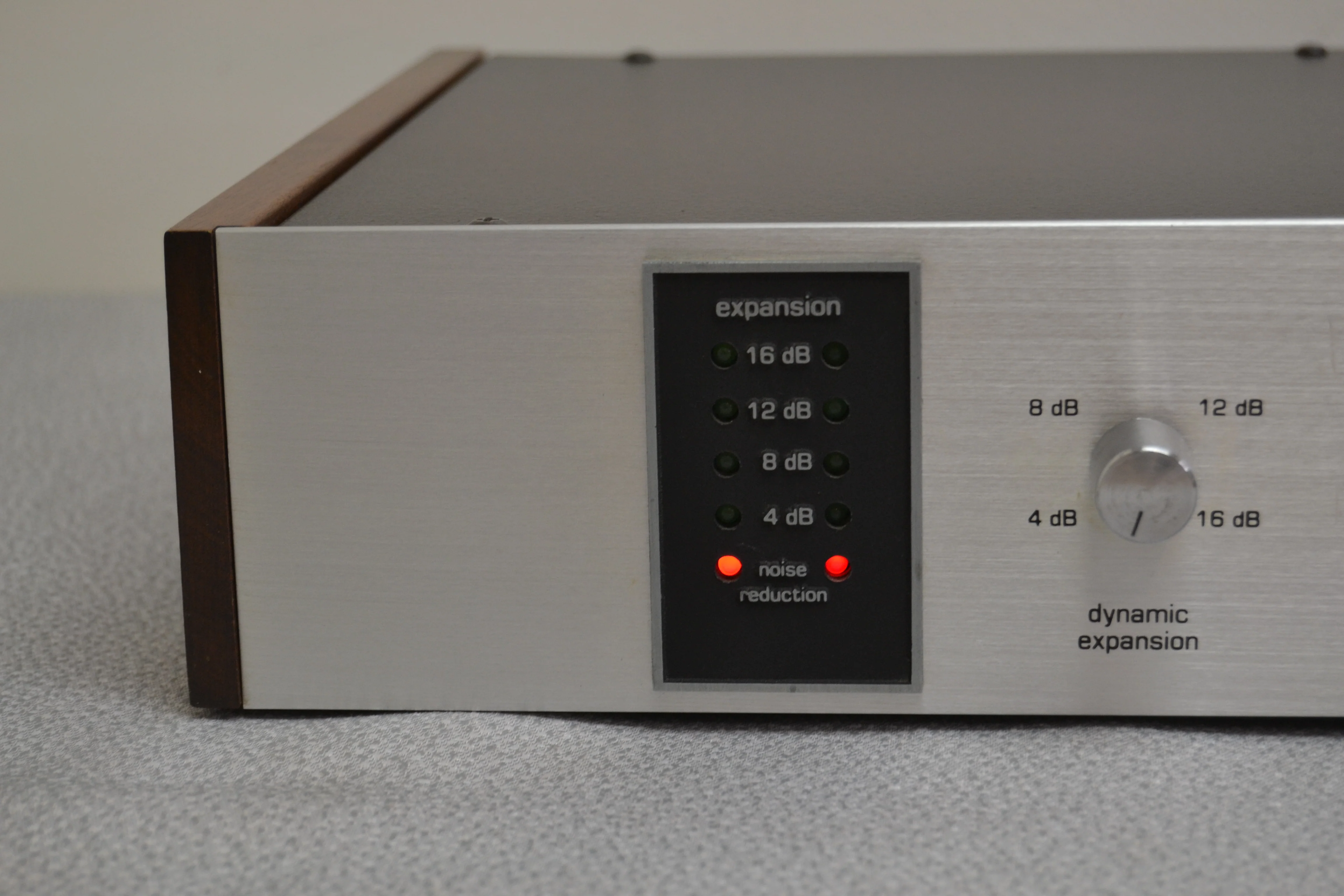

- Metering: Large front-panel meters (twin levels) help users visualize the expansion effect.
- Vintage Appeal: Known for its classic look, often with walnut wood sides (PRO-16W) or a metal rack-mount (PRO-16B).
Think of it as a "noise eraser" and "excitement booster" for old records or tapes, bringing back the punch and clarity that time or recording limitations removed, without making the music sound unnatural.
Specs
Total Expansion:
4 dB to 16 dB continuously variable
Downward Expansion:
-4 dB to —7 dB
Upward Expansion:
O to +9 dB
Expansion Attack Rate:
600 microseconds
Expansion Decay Rate:
80 milliseconds
Maximim Output Voltage:
6.5 Volts at 0.5% distortion, 1KHz;
maximum expansion; 50k Ohm load
Rated Output Voltage:
1 Volt
Minimum Sensitivity:
50 millivolts, level control maximum
Harmonic Distortion:
.08% at 1 Volt output, 1KHz; 16 dB expansion
.04% at 0.5 Volt output
Intermodulation Distortion:
0.1% 60 Hz and 2 KHz mixed 1:1, 1 Volt out
Hum and Noise:
80 dB below 1 Volt; expansion maximum
Input Impedance:
80K Ohms
Output Impedance:
300 Ohms

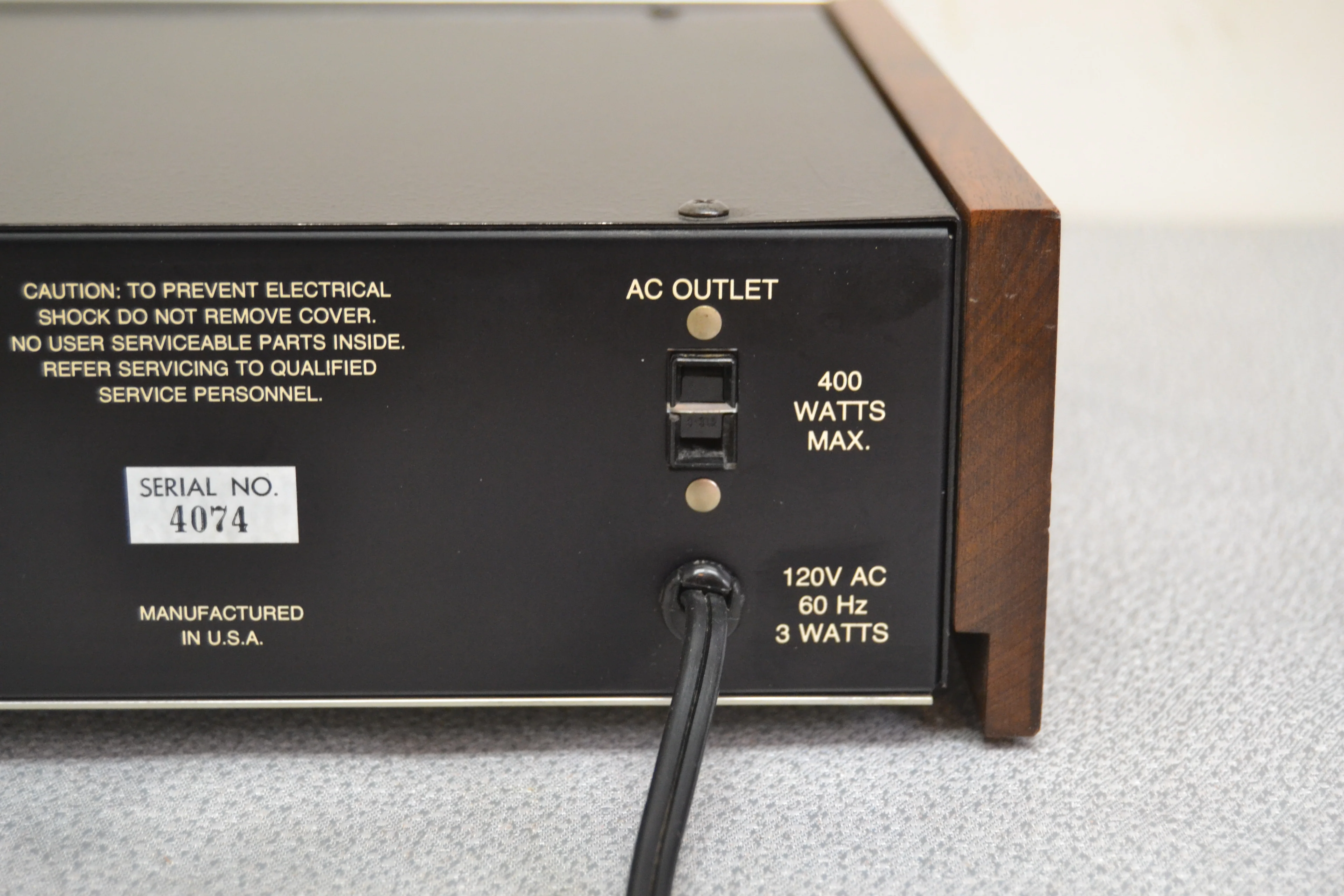

Power Requirements:
120V, 60Hz, 3 watts
Dimensions:
(PRO-16B) 19" x 3½" rack panel, 12" deep
(PRO-16W) *18" × 3½" x 12" Deep
Weight:
6 lbs., 12 oz.
*Wood end blocks on the PRO-16W are constructed of solid, hand rubbed American Walnut.
Original: $150.00
-70%$150.00
$45.00
Description
- Dynamic Expansion: It makes quiet signals even quieter while leaving loud signals untouched, effectively increasing the difference between soft and loud sounds.
- Noise Reduction: Ideal for cleaning up vinyl records or analog tape by electronically scrubbing out background noise, scratches, and tape hiss.
- Automatic Control: Features automatic attack and release times that adapt to the music, re-controlling dynamics for balanced reproduction.
- Controls: Typically includes controls for expansion level (dB), and often switches for different modes or types of expansion.
- Metering: Large front-panel meters (twin levels) help users visualize the expansion effect.
- Vintage Appeal: Known for its classic look, often with walnut wood sides (PRO-16W) or a metal rack-mount (PRO-16B).
Think of it as a "noise eraser" and "excitement booster" for old records or tapes, bringing back the punch and clarity that time or recording limitations removed, without making the music sound unnatural.
Specs
Total Expansion:
4 dB to 16 dB continuously variable
Downward Expansion:
-4 dB to —7 dB
Upward Expansion:
O to +9 dB
Expansion Attack Rate:
600 microseconds
Expansion Decay Rate:
80 milliseconds
Maximim Output Voltage:
6.5 Volts at 0.5% distortion, 1KHz;
maximum expansion; 50k Ohm load
Rated Output Voltage:
1 Volt
Minimum Sensitivity:
50 millivolts, level control maximum
Harmonic Distortion:
.08% at 1 Volt output, 1KHz; 16 dB expansion
.04% at 0.5 Volt output
Intermodulation Distortion:
0.1% 60 Hz and 2 KHz mixed 1:1, 1 Volt out
Hum and Noise:
80 dB below 1 Volt; expansion maximum
Input Impedance:
80K Ohms
Output Impedance:
300 Ohms
Power Requirements:
120V, 60Hz, 3 watts
Dimensions:
(PRO-16B) 19" x 3½" rack panel, 12" deep
(PRO-16W) *18" × 3½" x 12" Deep
Weight:
6 lbs., 12 oz.
*Wood end blocks on the PRO-16W are constructed of solid, hand rubbed American Walnut.
