Teac A1500 Reel to Reel Recorder 7 Inch

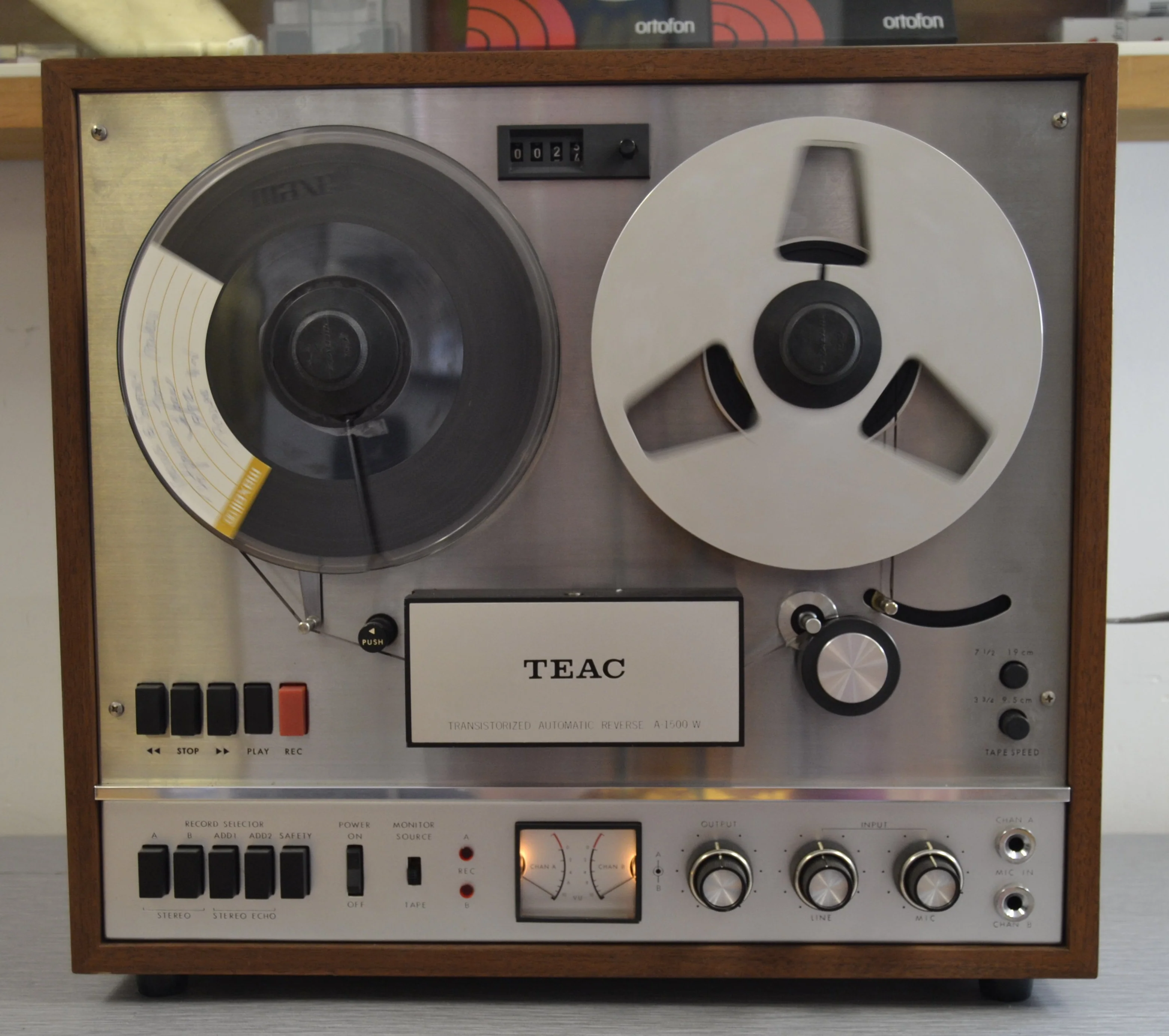

TEAC A-1500
Stereophonic Tape Recorder (1966)
Description
The TEAC model A-1500 stereo tape deck offers four hours of uninterrupted playback by a unique automatic reverse system.
Three motors and four heads assure superb performance from an all push-button system delivering professional quality sound.
Additional features include ADD recording and stereo echo.
Specifications
Track system: 4/2-track, 2-channel, stereo/monaural system
Heads: 1 x record, 2 x playback, 1 x erase
Motor: 1 x capstan, 2 x reel
Reel size: up to 7 inch reel
Tape speeds: 3Ā 3ā4Ā Ā 7Ā 1ā2Ā ips
Wow and flutter: 0.12%Ā (7Ā 1ā2Ā ips)
Frequency response: 30Hz to 20kHzĀ (7Ā 1ā2Ā ips)
Signal to Noise Ratio: 50dB
Crosstalk: 50dB
Input: 100mV (line), 1mV (mic)
Output: 1.0V (line)
Weight: 42lbs
Year: 1966
