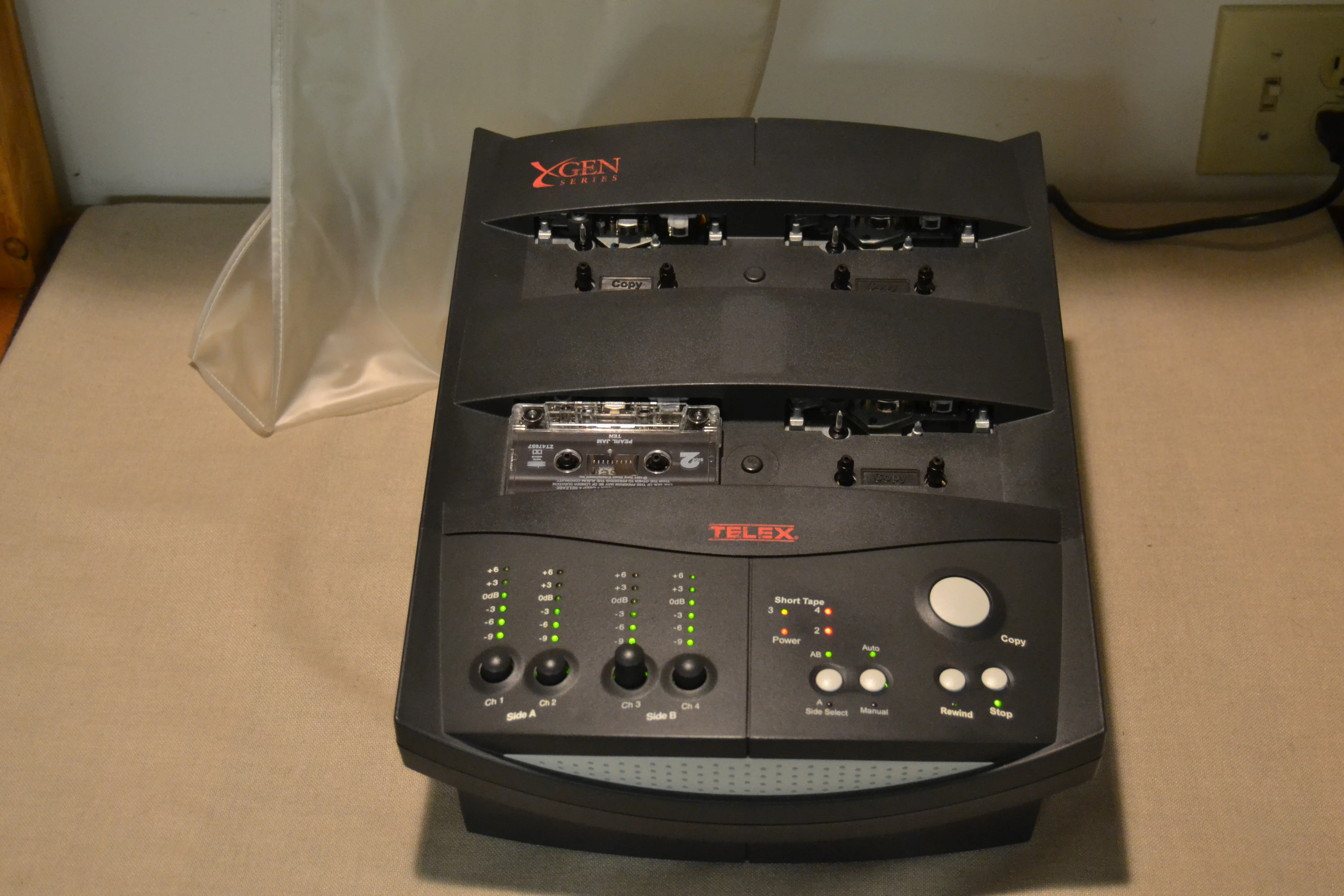

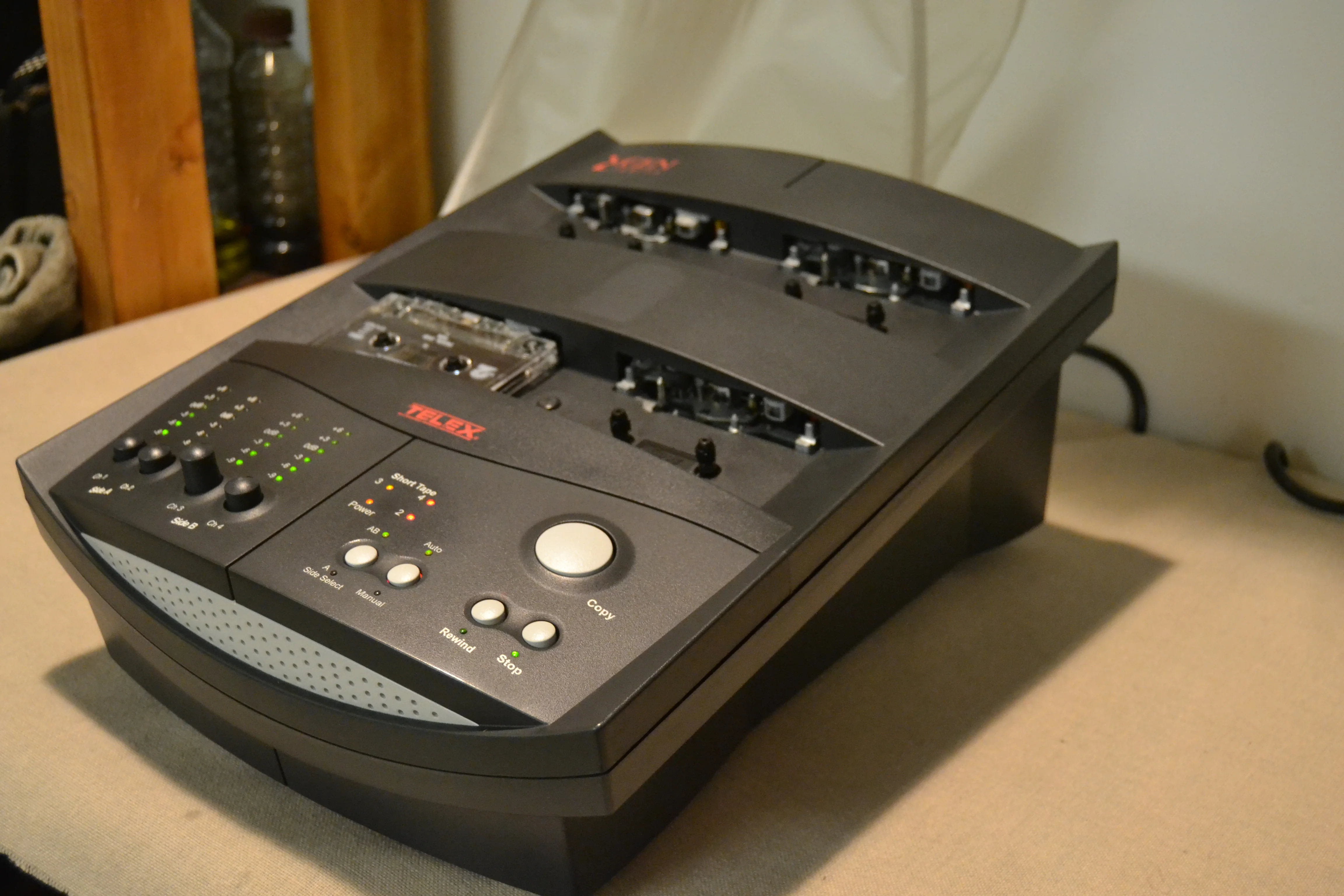

Telex Xgen Professional Cassette Duplicator
The Telex XGen was a high-speed cassette tape duplicator designed for rapid distribution of recordings, especially for public speaking events, known for its superior sound quality and 15 ips (inches per second) copy speed. Key specifications include a frequency response of 40 Hz - 12.5 kHz, a signal-to-noise ratio of 52 dB (A-weighted), and two tape tracks with either Type I or Type II equalization options. The unit also features a 600 kHz bias oscillator, weighs approximately 19.5 pounds, and operates on various AC power requirements.Ā
Key SpecificationsĀ
Configuration: 2-channel (8x model) or 1/2-Track configuration.
Copy Speed: 15 ips (inches per second).
Rewind Time: 30 seconds for a C-60 tape.
Frequency Response: 40 Hz ā 12.5 kHz.
Equalization: Type I or Type II options.
Signal-to-Noise Ratio: 52 dB (A-weighted).
Distortion: Less than 1% T.H.D. at nominal level.
Flutter: < .18% (8x model), < .23%.
Bias Oscillator: 600 kHz.
Power Requirements: 100V, 120V, 220V, 240V AC, 50/60 Hz.
Power Consumption: Approximately 85W.
Heads: Ferric only erase heads.
Weight: 19 lbs., 8 oz.
Original: $500.00
-70%$500.00
$150.00
Description
The Telex XGen was a high-speed cassette tape duplicator designed for rapid distribution of recordings, especially for public speaking events, known for its superior sound quality and 15 ips (inches per second) copy speed. Key specifications include a frequency response of 40 Hz - 12.5 kHz, a signal-to-noise ratio of 52 dB (A-weighted), and two tape tracks with either Type I or Type II equalization options. The unit also features a 600 kHz bias oscillator, weighs approximately 19.5 pounds, and operates on various AC power requirements.Ā
Key SpecificationsĀ
Configuration: 2-channel (8x model) or 1/2-Track configuration.
Copy Speed: 15 ips (inches per second).
Rewind Time: 30 seconds for a C-60 tape.
Frequency Response: 40 Hz ā 12.5 kHz.
Equalization: Type I or Type II options.
Signal-to-Noise Ratio: 52 dB (A-weighted).
Distortion: Less than 1% T.H.D. at nominal level.
Flutter: < .18% (8x model), < .23%.
Bias Oscillator: 600 kHz.
Power Requirements: 100V, 120V, 220V, 240V AC, 50/60 Hz.
Power Consumption: Approximately 85W.
Heads: Ferric only erase heads.
Weight: 19 lbs., 8 oz.
