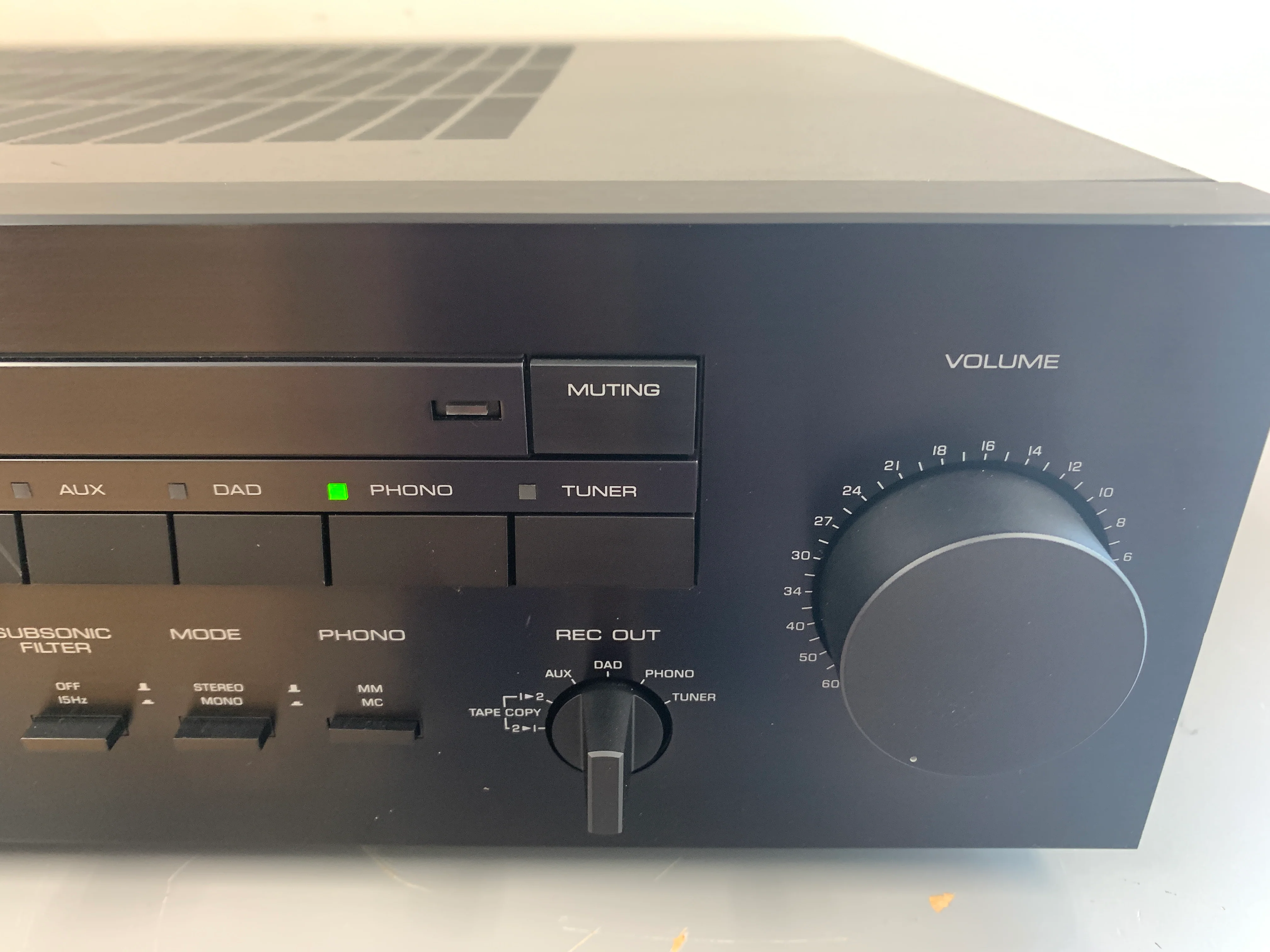

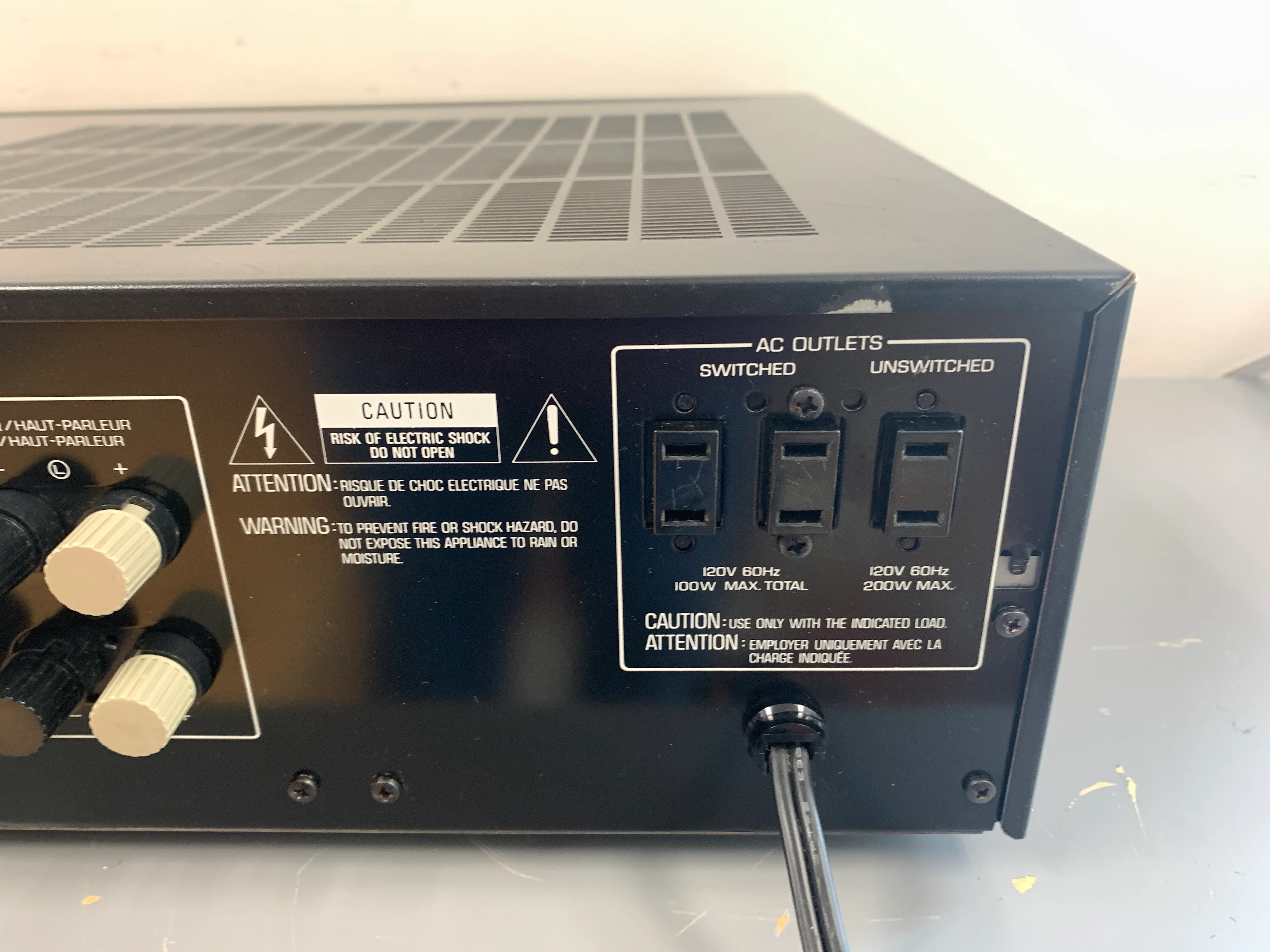

Yamaha A-700

Stereo Integrated Amplifier (1983-84)

Specifications

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.005%

Damping factor: 90

Input sensitivity: 0.16mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 76dB (MC), 92dB (MM), 106dB (line)

Channel separation: 70dB (MM), 65dB (line)

Output: 150mV (line)

Dimensions: 435 x 136 x 401.5mm

Weight: 11.2kg

Year: 1983
