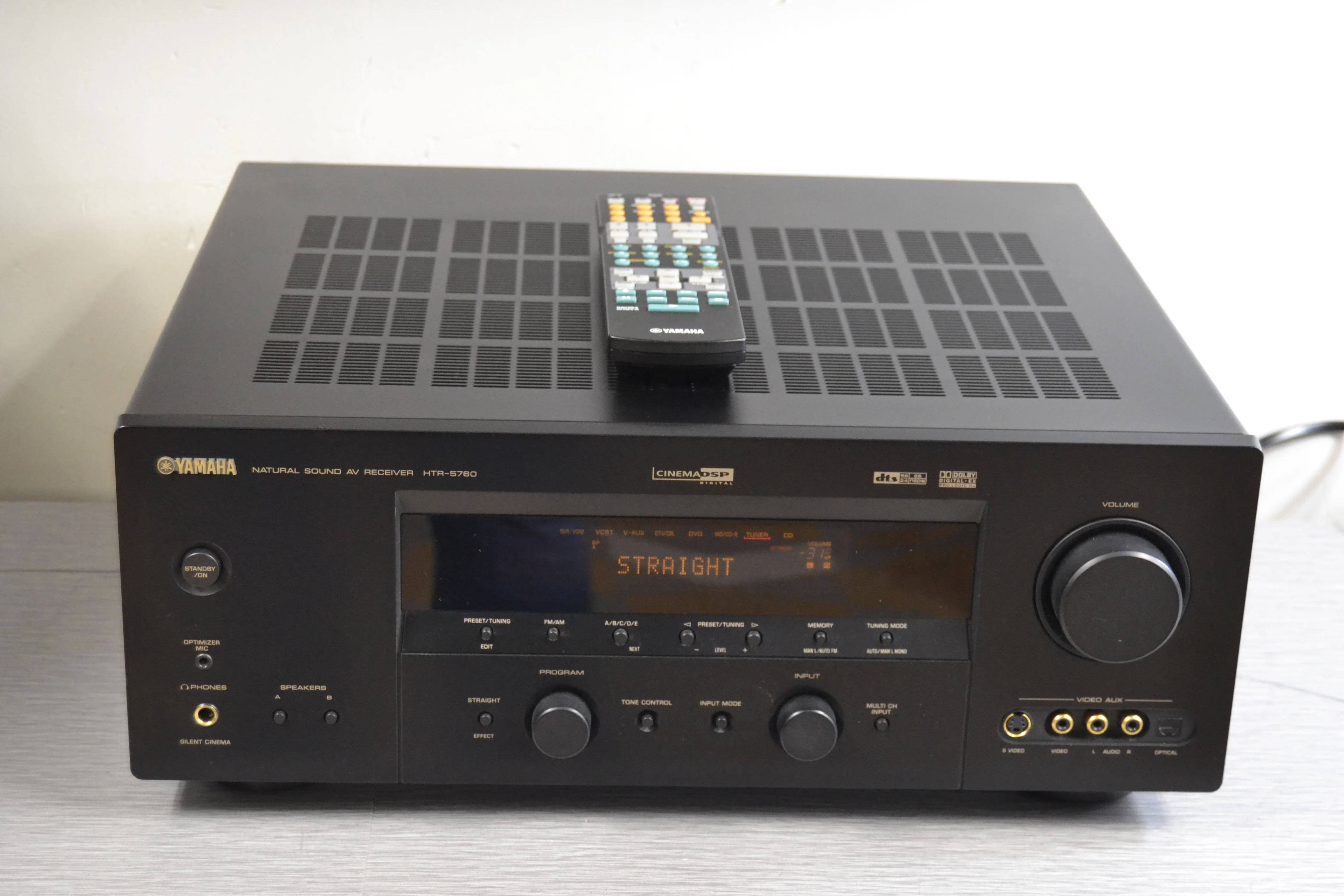

Yamaha HTR-5760 AV Stereo Receiver * 95W RMS * 2004 * Remote Control
Yamaha HTR-5760
Audio Video Receiver (2004-05)
Specifications
Tuning range: FM, MW
Power output: 95 watts per channel into 8Ω (stereo)
Surround output: 95W (front), 95W (center), 95W (rear)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.06%
Damping factor: 100
Input sensitivity: 200mV (line)
Signal to noise ratio: 100dB (line)
Channel separation: 45dB (line)
Output: 200mV (line), 2V (Pre out)
Speaker load impedance: 4Ω (minimum)
Digital inputs: coaxial, optical
Video Connections: component, composite, SVHS
Dimensions: 435 x 171 x 416mm
Weight: 12.5kg
Finish: black, silver or gold
Accessories: remote control
Description
Yamaha HTR-5760
Audio Video Receiver (2004-05)
Specifications
Tuning range: FM, MW
Power output: 95 watts per channel into 8Ω (stereo)
Surround output: 95W (front), 95W (center), 95W (rear)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.06%
Damping factor: 100
Input sensitivity: 200mV (line)
Signal to noise ratio: 100dB (line)
Channel separation: 45dB (line)
Output: 200mV (line), 2V (Pre out)
Speaker load impedance: 4Ω (minimum)
Digital inputs: coaxial, optical
Video Connections: component, composite, SVHS
Dimensions: 435 x 171 x 416mm
Weight: 12.5kg
Finish: black, silver or gold
Accessories: remote control
