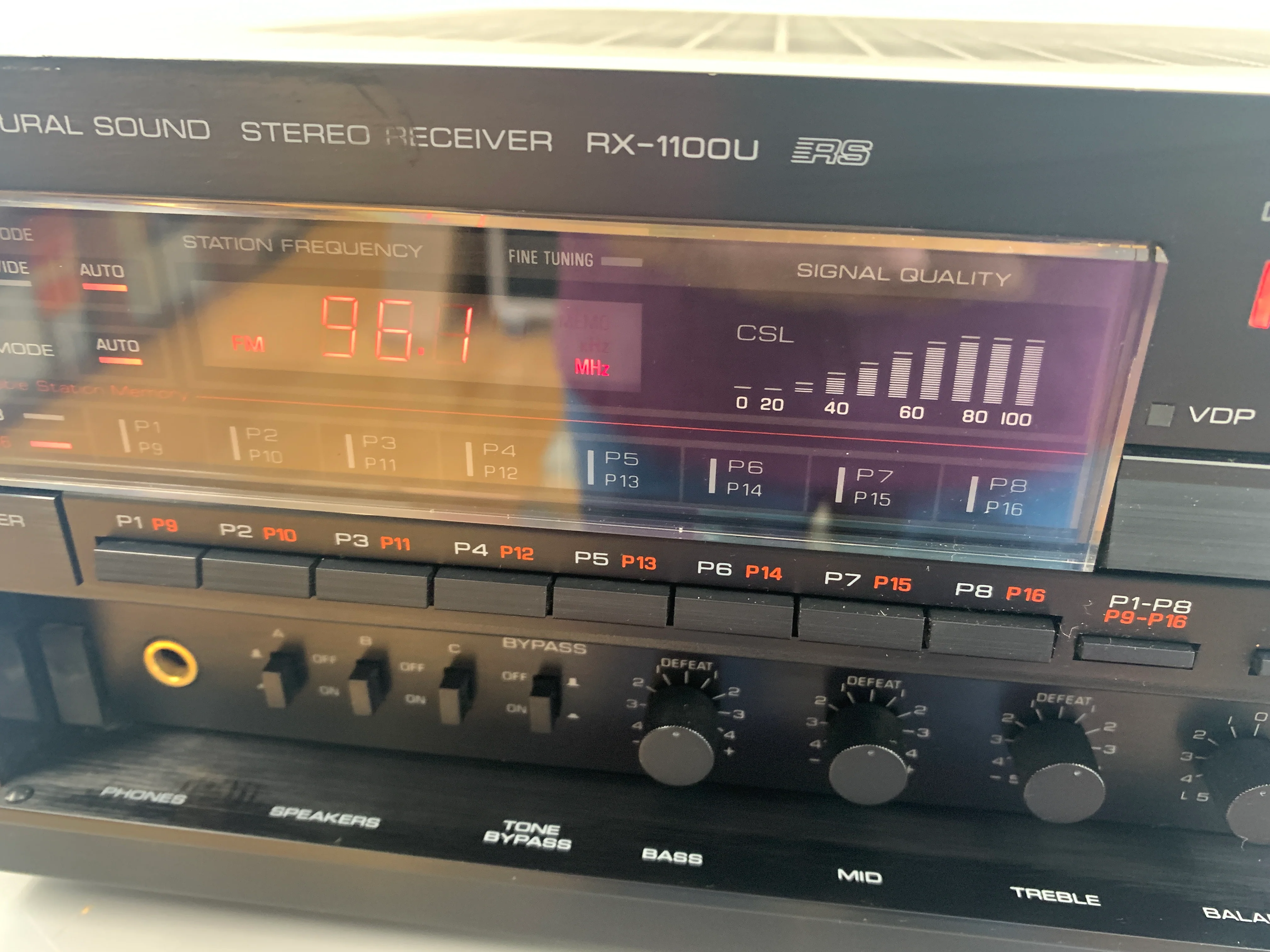

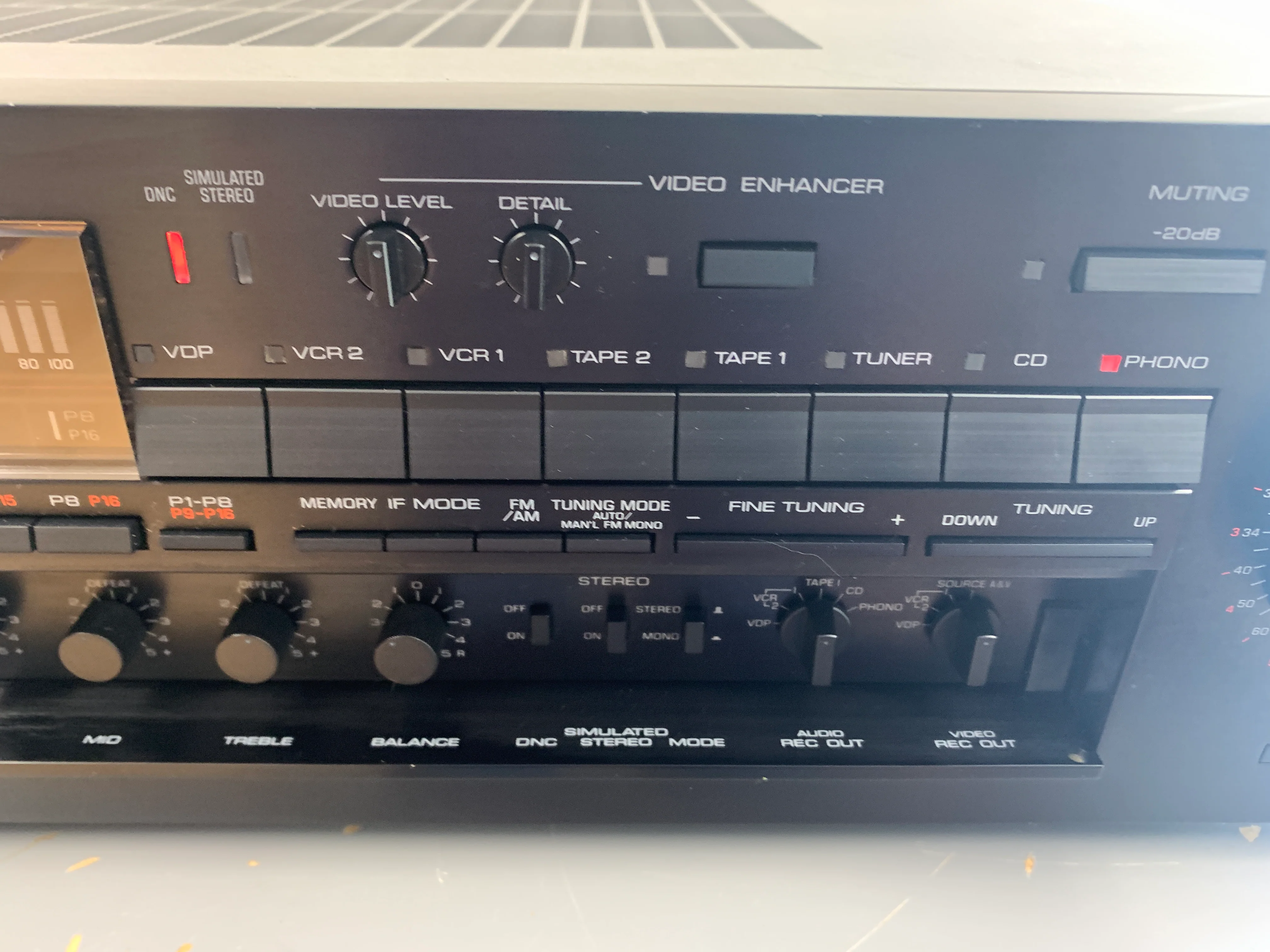

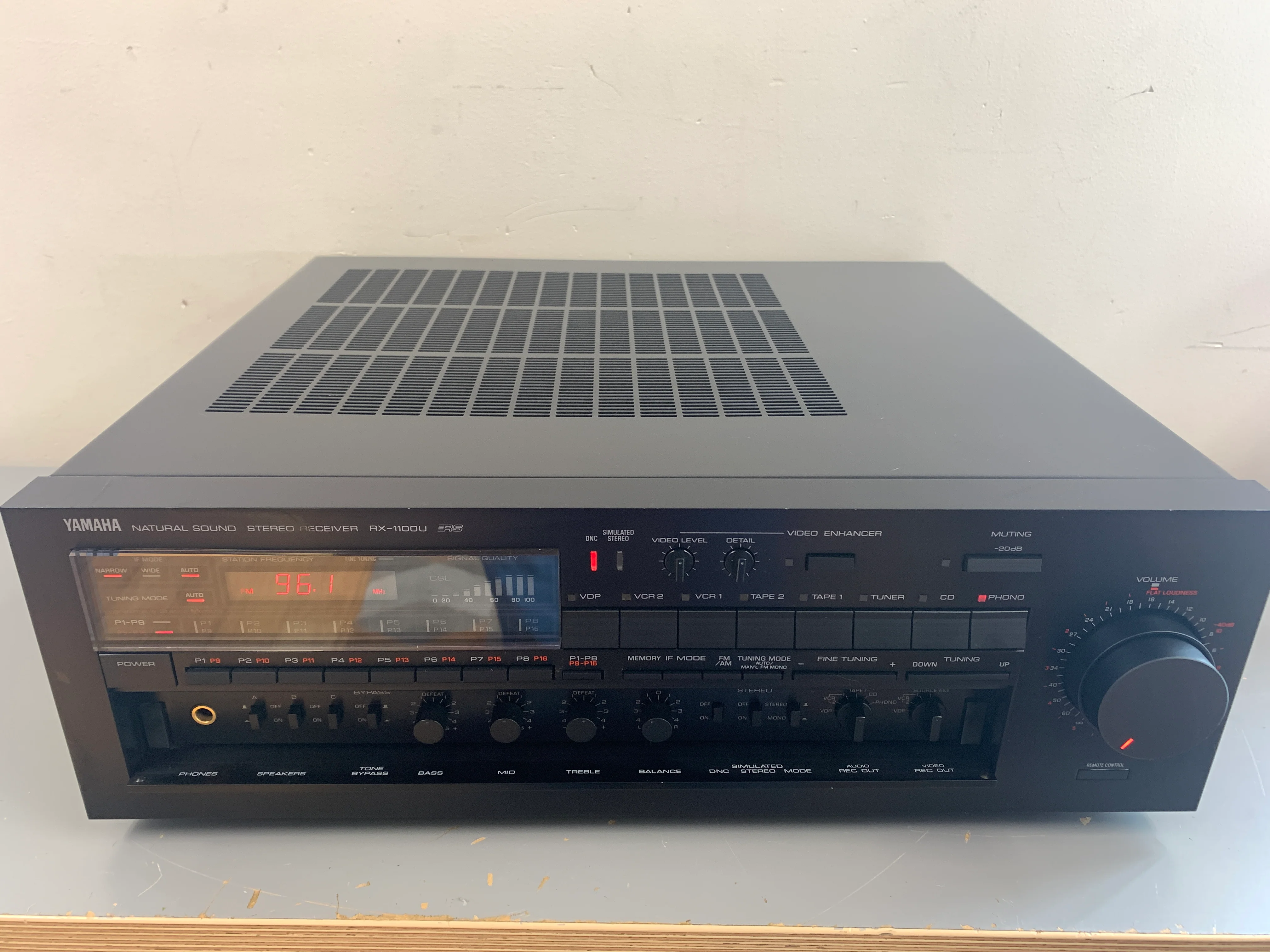

Yamaha RX-1100

Audio Video Stereo Receiver (1987-89)

Specifications

Tuning range: FM, MW

Power output: 125 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.015%

Damping factor: 60

Input sensitivity: 0.16mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 75dB (MC), 92dB (MM), 103dB (line)

Channel separation: 60dB (MM), 60dB (line)

Output: 150mV (line), 1V (Pre out)

Speaker load impedance: 8Ω (minimum)

Video Connections: composite

Dimensions: 435 x 151 x 423mm

Weight: 12kg

Accessories: remote control

Year: 1987
