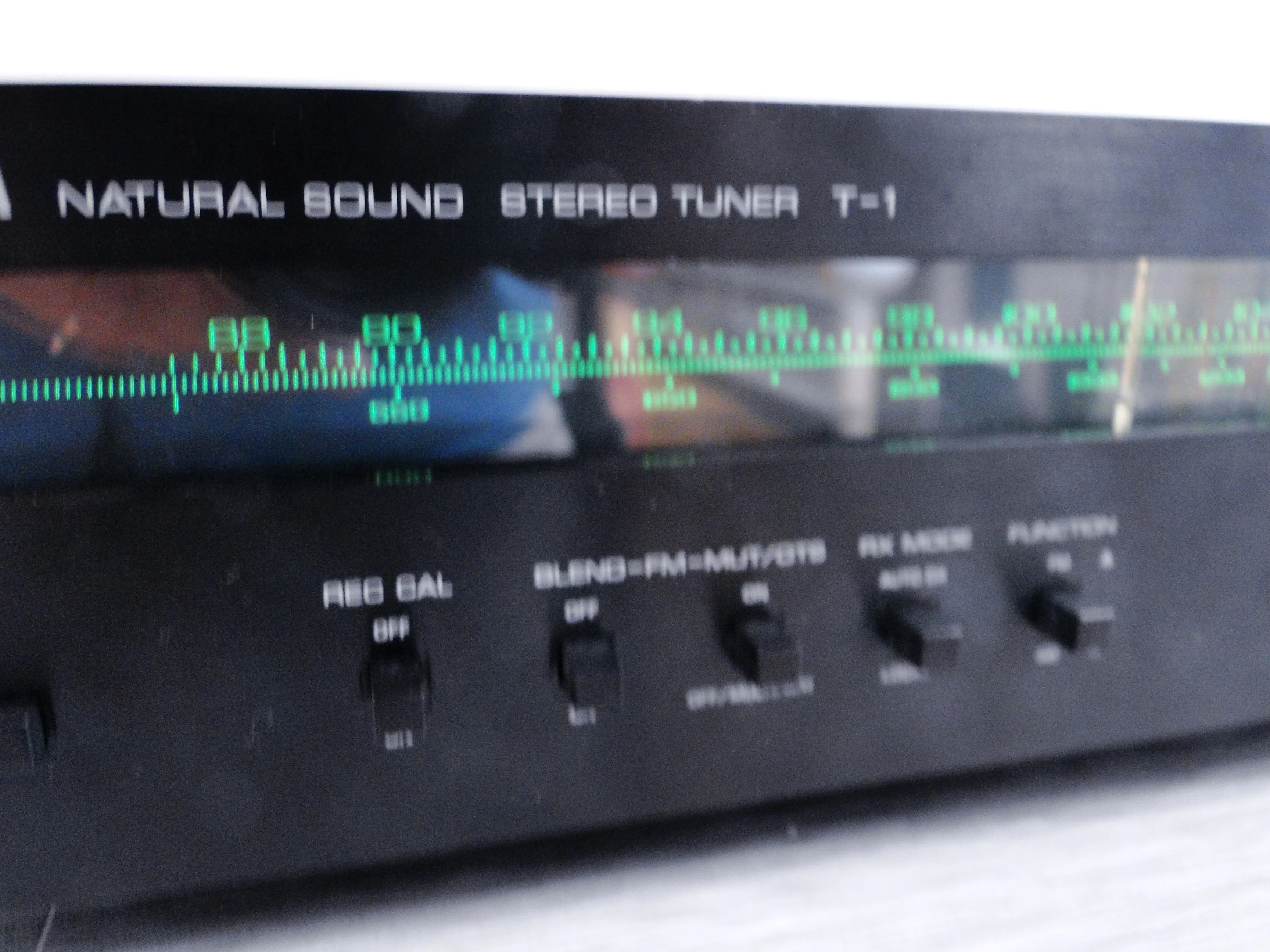

Yamaha T-1

Natural Sound Stereo Tuner (1978-81)

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 525 to 1605 kHz

Sensitivity: 1.7uV (FM), 15uV (MW)

Signal to Noise Ratio: 78dB (FM), 50dB (MW)

Distortion: 0.13% (FM), 0.4% (MW)

Selectivity: 92dB (FM), 30dB (MW)

Frequency response: 30Hz to 15kHz (FM)

Output: 500mV (FM), 125mV (MW)

Dimensions: 435 x 97 x 376mm

Weight: 5.7kg
